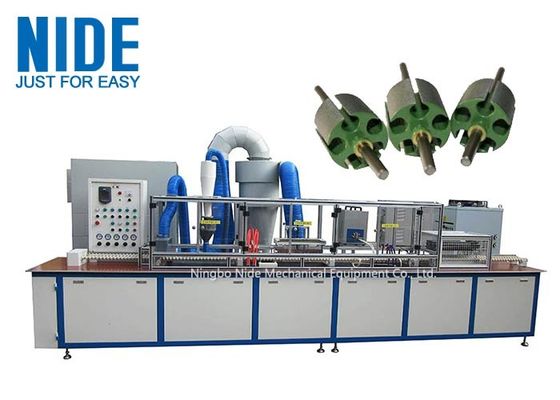

Powder Electrostatic Coating Machine
Product Details:
Place of Origin: China
Brand Name: Nide
Certification: None
Model Number: ND-JF-80GG
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 60 working days
Payment Terms: T/T, L/C
Supply Ability: 120 sets per year
Contact Now
Detailed Product Description
Product Name: Armature Powder Coating Machine Line Type: Automatic
Condition: New Certification: CE
Usage: Powder Coating Workpieces Color: Customer's Request
High Light:

automatic powder coating machine

,

powder coating machinery

Powder Electrostatic Coating Machine





Quick Detail:

1, This machine is widely used in mini rotor insulating coating, such as automotive, motorcycle, power cycle, toy and small electro motor of appliance.
2, This machine is the most technical advanced product in electrostatic coating field
3. High frequency heating, with workmanship cover, not easy to shitck powder.



Description:

This power coating machine is the most technical advanced product in electrostatic coating field, which is widely used in mini rotor insulating coating, such as automotive, motorcycle, power cycle, toy and small electromotor of appliance.

Specifications :

Working piece max O.D:

120mm

Working piece max stack length

70mm

Working piece max shaft length

180mm

Recycle efficiency

≥95%

Production efficiency:

1500pcs/hour

Coating thickness:

0.15mm-0.5mm adjustable

Line speed m/min:

0.1-1.5m adjustable

Screw rod length

3500mm

Feeding speed

0~0.5RPM

Static voltage

0~60KN

Static current

≤200μA

Air source pressure

0.5~0.7MPa

Voltage

380V three phase

High frequency power

30KW

Total dimension

4900mm*2500mm*2000

Weight

3000Kgs



Working procedure:
Small motor is transported to fluid bed by screw for coating. Insulation power is equally coated on its surface, and then cured by high frequency heating. This machine consists of coating, curing, cooling and powder recycling. Except loading and unloading, the other processes are completed automatically.



Applications:

This machine is widely used in mini rotor insulating coating, such as automotive, motorcycle, power cycle, toy and small electromotor of appliance.



Competitive advantages:

This machine has a wide application, and easy for operation. The coated armature has shiny surface, even thickness, good electricity performance.
