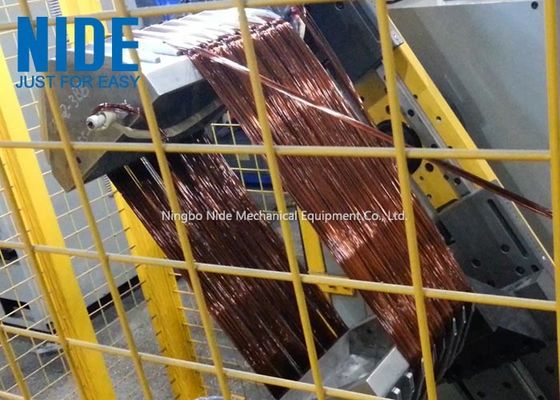

Automatic Large Pump Motor Coil Winding Machine

Automatic Large Pump Motor Coil Winding Machine

  • Automatic Large Pump Motor Coil Winding Machine
  • Automatic Large Pump Motor Coil Winding Machine
  • Automatic Large Pump Motor Coil Winding Machine
  • Automatic Large Pump Motor Coil Winding Machine
Automatic Large Pump Motor Coil Winding Machine
Product Details:
Place of Origin: China
Brand Name: Nide
Certification: None
Model Number: RX6-1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 35 working days
Payment Terms: T/T, L/C
Supply Ability: 200 sets per year
Contact Now
Detailed Product Description
Condition: New After-Sales Service: Overseas Service Center Available
Working Station: Single Working Station Customized Service: Available
High Light:

high efficiency motor stator winding machine

,

single station automatic coil winding machine

,

single station coil winding machine automatic

Big electric motor sator torodid coil winding making machine for pump motor







(1) Application

This automatic stator big coil winding machine is suitable for winding the coil for big power motor,such as pump motor.





(2) Machine function and characteristic

The tooling could be auto extend and retract. Therefore, it is no need to discharge the tooling when taking out the finished coil.

Adopts special purpose controller to realize the function of auto winding, auto arraying, slot crossing, auto getting through wax tube and output setting, etc. It could produce different dimension coils which are for same series size stator by adjusting the tooling, and tension is adjustable too. Thus it can reduce the labor and improve the efficiency.





(3) Main Technical data:

Swing stroke: 450mm
Swing diameter: ≤1200mm
Wire diameter: 0,3~1.6mm
Winding head: 1
Parallel wire no. ≤40pcs
Applicative frame size: 280, 315, 355, 400, 455
Wire arraying width 850mm
Max RPM: 60RPM
Max wire number: 45 wires
Effective length of the tooling ≤850mm
Power: 38V- 50/60HZ, 5.5Kw
Weight: 1000kg
Air pressure: 0.4-0.6mpa
Dimension:

2300mm X2200mm X2000mm





Winding diagram of large motor stator toroidal coil winding machine

Semi automatic Big Power Pump Motor Stator Coil Making machine for deep water pump motor-1

Semi automatic Big Power Pump Motor Stator Coil Making machine for deep water pump motor-2Semi automatic Big Power Pump Motor Stator Coil Making machine for deep water pump motor-3
