Name: CNC Full Automatic Coil Winding Machine / Equipment for big power motor
Brand: Nide
SKU: RX4-450
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (167 reviews)

Home Products Automatic Coil Winding Machine

CNC Full Automatic Coil Winding Machine / Equipment for big power motor

Product Details:

Place of Origin:	China
Brand Name:	Nide
Certification:	None
Model Number:	RX4-450

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wooden case suitable for sea transportation
Delivery Time:	35 working days
Payment Terms:	T/T, L/C
Supply Ability:	100 sets per month

Contact Now

Detailed Product Description

Customized Service:	Available	Working Station:	Single Working Station
Aoolication:	Pump Or Big Type Motor	Certificate:	CCC
Name:	Coil Winding Machine
High Light:	electric motor coil winding machine , air coil winding machine

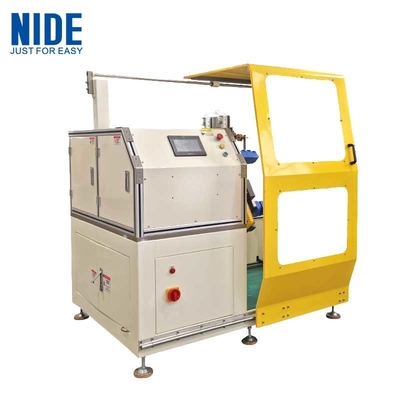

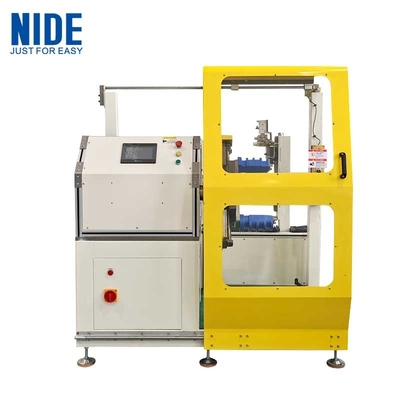

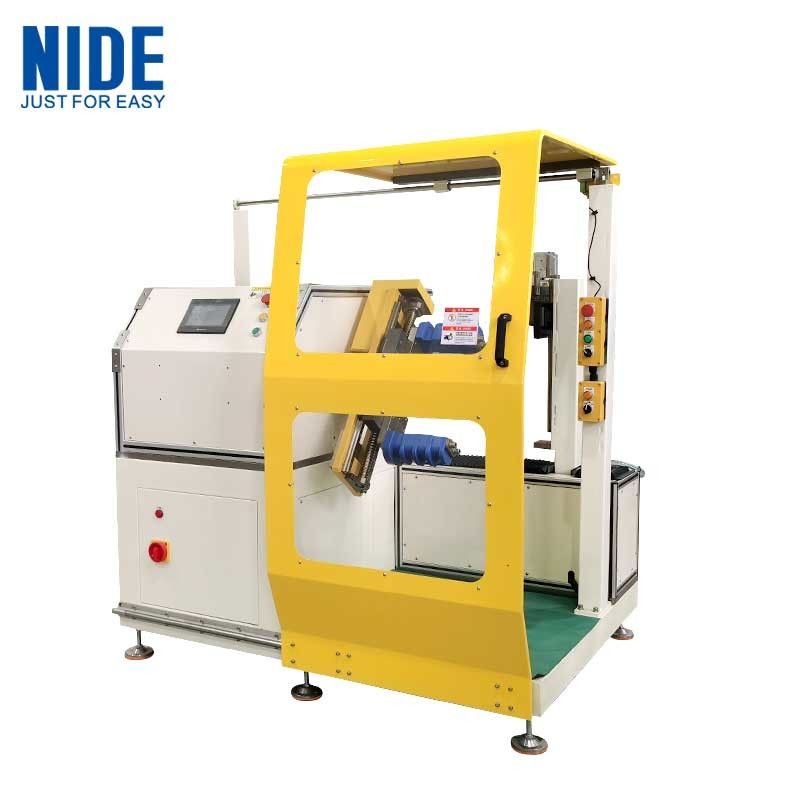

CNC Full Automatic Coil Winding Machine / Equipment for big power motor

Quick Detail:

1. Model No.: RX4-450

2. This elector motor stator coil winding machine could produce different dimension coils which is for same series size stator by adjusting the tooling.

3. It is suitable for winding the coil for big power motor.

4. Wire arraying width is 400mm.

Description:

Big Stator Coil Winding Machine adopts special purpose controller to realize the function of auto winding, auto arraying, slot acrossing, auto getting through wax tube and output setting, etc. This Big Coil Winding Machine is suitable for winding the coil for big power motor. Big Stator Coil Winding Machine could produce different dimension coils which is for same series size stator by adjusting the tooling, and tension is adjustable.

Technical parameter:

Swing diameter	≤450mm
Effective length of the tooling	≤400mm
Parallel wire number	≤16 pcs
Wire diameter	0.3~1.2mm
Wire arraying width	400mm
Power supply	220V/50/60Hz 2.2KW
Air supply	0.4~0.6MPa
Weight	950Kg
Dimension:	150017001550mm
