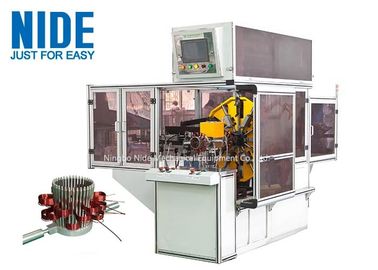

Automatic Coil Winding Machine , Alternator Motor Generator Motor Stator Wave Winding Machine

Automatic Coil Winding Machine , Alternator Motor Generator Motor Stator Wave Winding Machine

  • Automatic Coil Winding Machine , Alternator Motor Generator Motor Stator Wave Winding Machine
  • Automatic Coil Winding Machine , Alternator Motor Generator Motor Stator Wave Winding Machine
  • Automatic Coil Winding Machine , Alternator Motor Generator Motor Stator Wave Winding Machine
  • Automatic Coil Winding Machine , Alternator Motor Generator Motor Stator Wave Winding Machine
  • Automatic Coil Winding Machine , Alternator Motor Generator Motor Stator Wave Winding Machine
  • Automatic Coil Winding Machine , Alternator Motor Generator Motor Stator Wave Winding Machine
Automatic Coil Winding Machine , Alternator Motor Generator Motor Stator Wave Winding Machine
Product Details:
Place of Origin: China
Brand Name: Nide
Certification: None
Model Number: BXBW1-55-80
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 35 working days
Payment Terms: T/T, L/C
Supply Ability: 50 sets per year
Contact Now
Detailed Product Description
Name: Stator Wave Winding Machine Machine Size: Middle Size
Automation Type: Fully Automatic Working Station: Single Working Station
Customized Service: Available
High Light:

electric motor coil winding machine

,

air coil winding machine

Alternator Motor Generator Motor Stator Wave Winding Machine





Description:

Winding spindle driving by servo motor, wire feeding, cutting and winding are automatically completed, it could use one wire or two wire parallel winding, transfer form indexing is automatically, the machine is especially suitable for automobile alternator stator coil winding.





Quick Detail:



1. This automatic stator wave winding machine is used to wind coils.
2. This wave winding machine can automatically do winding.
3. This winding machine is suitable for the automobile alternator stator coils winding..


Technical parameter:
 Wire diameter 0.5~1.8mm
 Max stack height 55mm
 Max stator OD 160mm
 Max stator ID 80mm
 Jump file number: 250RPM
 Air source ≥0.4MPa
 Power supply 380V 50/60HZ 4KW
 Weight about 1000KG
 Dimension 1850*2100*2000mm





Competitive advantages:

Variety of application, easy operation.

We have Overseas Service Center.

Machine is controlled by PLC. All the parameter can be set in the touch screen.

It is suitable for stators with different model number and dimension.

The operation and tooling change process is easy.

We could customize machine for our customer as per their requirement.

We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.





Picture show:

alternator-stator-coil-winding-machine91



alternator-stator-coil-winding-machine92

alternator-stator-coil-winding-machine93



Click below picture to view the video.

wave winding machine
