8 Working Station Stator Winding Machine Hight Efficiency For Air Condition Motor

8 Working Station Stator Winding Machine Hight Efficiency For Air Condition Motor

  • 8 Working Station Stator Winding Machine Hight Efficiency For Air Condition Motor
  • 8 Working Station Stator Winding Machine Hight Efficiency For Air Condition Motor
  • 8 Working Station Stator Winding Machine Hight Efficiency For Air Condition Motor
8 Working Station Stator Winding Machine Hight Efficiency For Air Condition Motor
Product Details:
Place of Origin: China
Brand Name: NIDE
Certification: NONE
Model Number: RXL4-100
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Wooden case which is suitable for sea transport
Delivery Time: 45 working days
Payment Terms: L/C, T/T, L/C
Supply Ability: 160 sets per year
Contact Now
Detailed Product Description
Name: Stator Coil Winding Machine Used For: Air Condition Motor/washing Machine Motor/pump Motor
Color: White Or Customized Type: Full Auto
Pole: 2/4/6 Poles Stations: 8
High Light:

transformer winding machine

,

stator coil winding machine

 8 Working Station Stator Coil Winding Machine for air condition motor





(1) Machine main function and characteristic

This stator coil winding machine has four winding heads with 8stations.Hight efficiency is the biggest advantage.The coil winding machine can put coil into transfer tool automatically,especially suitable for high fill factor,small slot opening stator;auto skip,auto cutting,auto indexing could be completed at one time,parameter can be set in HMI,winding tension is adjustable,has continuous/discontinuous winding method,can meet the 2poles,4poles,6poles coil winding.

Mature and advanced technology,reliable quality,easy operation and maintenece.





(2)Application

The stator winding machine is suitable for air conditoner motor,washing machine motor,compressor motor,fan motor,pump motor etc.





(3)Technical paramenter

Production name: 8 stations stator coil winding machine
Wire diameter: 0.19~1.2mm
Flyer diameter: 220mm
Max stack height: 65mm
Max stator OD: 130mm
Max RPM: 2500RPM
Air source: ≥0.5MPa
Operation station: 8
Winding head: 4
Power supply: 380V 50/60HZ 15KW
Weight: about 4500KG
Dimension: (L)2400*(W)1900*(H)2250mm

The above data is for reference only, please contact us for detailed data,

our machine can be customized according to customer's needs.

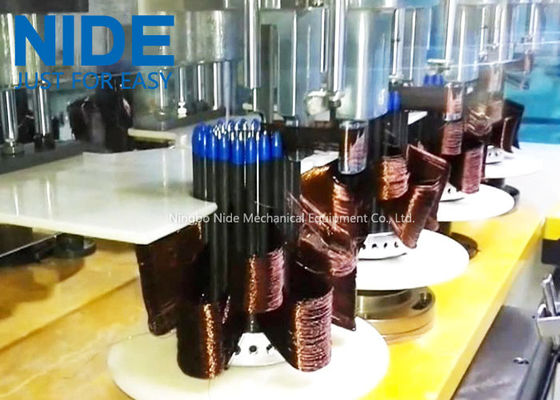

(4)The stator winding machine picture

stator coil winding machine

fan motor stator winder coil winding machine





With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries .

Customerized service 1. Customized product design and manufacturing
2. Customized tranning
3.Technical suggestions
After-sales service 1. Warranty Period: 12 month usually
2. Overseas service center available

3. Engineers available to service overseas
