Place of Origin: | China |
Brand Name: | NIDE |
Certification: | CE |
Model Number: | ND-R2SW01H |
Minimum Order Quantity: | 1 set |
---|---|
Price: | negotiable |
Packaging Details: | Wooden case suitable for sea transportation |
Delivery Time: | 40 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 100 sets per year |
Product Name: | Self-Balance Scooter Hub Motor Winding Machine | Used For: | Wheel Hub Motor Stator Coil Winding |
---|---|---|---|
Color: | Customized | After-sales Service Provided: | Overseas Service Center Available |
Application: | Self-Balance Scooter ,Electric BIKE, | Winding Stations: | 2 |
Type: | Fully Automatic | Size: | Middle |
Highlight: | Wheel Hub Motor Winding Machine,Self Balance Scooter Motor Winding Machine,2 Stations Motor Stator Winding Machine |

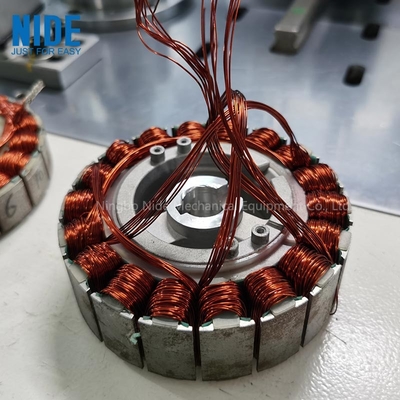

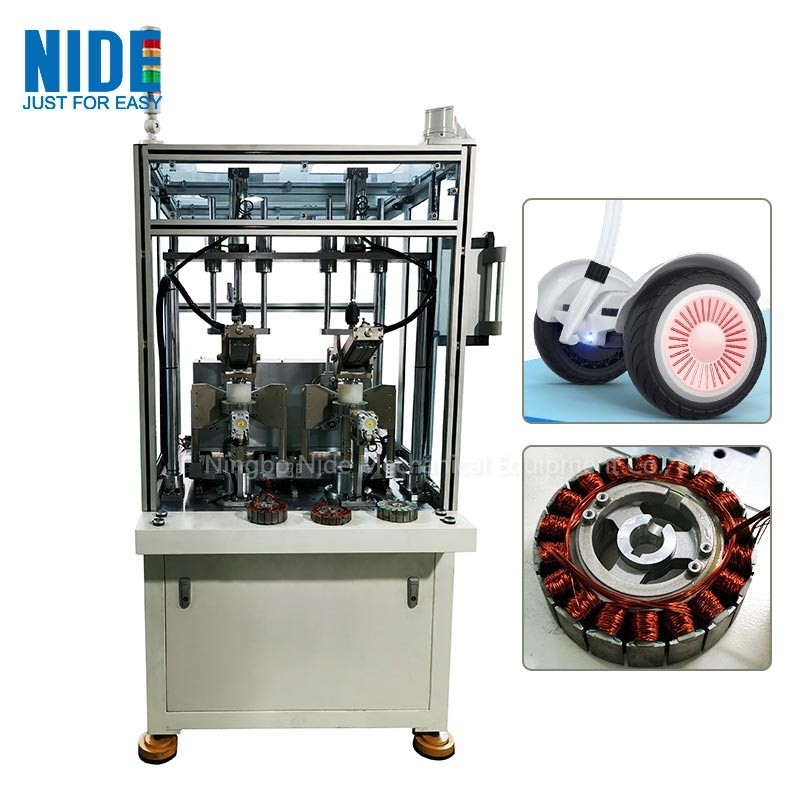

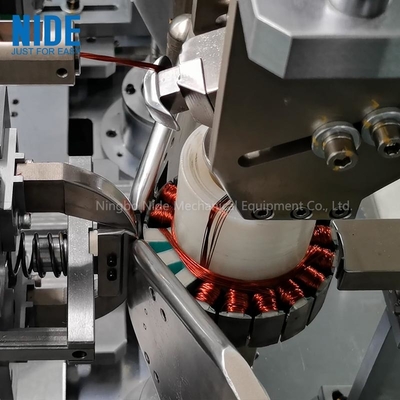

This brushless wheel hub motor winding machine is suitable for self-balancing scooter motor windings. It adopts flying fork winding technology and is equipped with two winding machine stations, which can wind 9 strands at the same time.
The brushless wheel hub motor is built into the drive wheel. This structure not only reduces the overall weight of the self-balancing scooter, but also the motor is not easily damaged. The self-balancing scooter has obvious advantages in volume and weight, the overall mass is reduced, the energy transmission link and energy loss are reduced, and the motor generates less heat.
Wheel hub winding machine application:
Self-balancing scooters, electric scooters, electric balance cars, small electric vehicles, two-wheeled electric vehicles.
Technical parameters:
Product name: | Automatic self-balancing scooter wheel motor winding machine |
Wheel motor Stator ID: | 10-100mm |
Wheel motor Stator O.D: | 80-310mm |
Wheel motor Stator stack length: | 10-50mm |
Wire dia: | 0.2-1.3mm |
Max. winding speed : | 1200RPM |
Winding station: | 2 |
Winding method: | Flyer Coil Winding |
Parallel winding wire number : | 1-12 |
Voltage : | three phase 380V 50HZ , single phase 220V 50HZ |
Air pressure: | 0.4-0.7 MPA |
Total power : | <7KW |
Weight : | about 750KG |
Dimension : | 1100x1000x1700mm |
Picture Show:
