| Place of Origin: | China |
| Brand Name: | NIDE |
| Certification: | CE |
| Model Number: | RXL4-100B |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Wooden case suitable for sea transportation |
| Delivery Time: | 40 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 sets per year |
| Product Name: | Induction Motor Winding Machine | Used For: | Motor Stator Coil Winding |
|---|---|---|---|
| Color: | Customized | After-sales Service Provided: | Overseas Service Center Available |
| Application: | Induction Motor , Single Phase Motor ,3 Phase Motor | Winding Stations: | 8 |
| Type: | Fully Automatic | Size: | Middle |
| High Light: | transformer winding machine,motor winding machine |
||
Full automatic 4 pole motor winding machine / stator coil winding machine from Chinese professional manufacturer and supplier
(1) Motor stator winding machine main function and characteristic
The Chinese manufacturing motor winding machine has four winding heads with eight operation stations, high efficiency is its feature.
The motor stator winding machine can automatically arrange the coils neatly into the winding mold, which is especially suitable for the motor stator winding with high production capacity requirement, high slot filling rate, small slot gap.
Winding mode such as auto skip, auto cutting and auto indexing could be completed at a time successively ; Parameter could be set in human-machine interface,such as number of turns , winding speed, winding direction and so on ; Continuous/discontinuous winding way ; Coil making for 2-pole 4-pole 6-pole motor stator
(2) Motor stator winding machine application
The automatic motor stator winding machine is suitable for AC motor , induction motor , DC motor , small electric motor , synchronous motor , single phase motor , 3 phase motor , asynchronous motor , generator , shaded pole motor , electric fan motor , air conditioner motor , washing machine motor , etc.
(3) Motor stator winding machine Main technical data
| Product name: | Automatic 8 stations motor stator winding machine |
| Wire diameter: | 0.19~1.2mm |
| Max. stator stack length: | 100mm |
| Max. stator OD: | 120mm |
| Winding speed: | ≤2500RPM |
| Swing diameter: | 220mm |
| Winding head: | 4pcs |
| Operation station: | 8pcs |
| Air pressure: | ≥0.5MPa |
| Transfer number: | 2~6section |
| Voltage: | 380V/50/60HZ |
| Power supply: | 15KW |
| Weight: | about 5000kg |
| Dimension: | L2100*W1350*2200mm |
(4) Motor stator winding machine picture show:
1. The motor winding machine has four winding heads with eight operation stations
2. Motor stator winding machine tool display

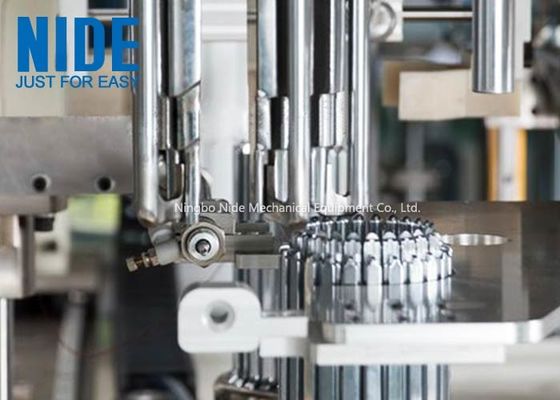

3. Motor winding machine winding mold and stator display
The motor stator coil winding machine video https://youtu.be/GB2xykQSPjE
