| Place of Origin: | China |
| Brand Name: | nide |
| Certification: | none |
| Model Number: | ND-SLR01C |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Wooden case which is suitable for sea transportation |
| Delivery Time: | 60 working days |
| Supply Ability: | 90 sets per year |
| Name: | Staotr Coil Winding Machine | Used For: | Linear Type Stator Coil Winding |
|---|---|---|---|
| Color: | White Or Customized | After-sales Service: | Engineers Available To Service Machinery Overseas |
| Condition: | New | Stator OD: | MAX 120MM |
| Type: | Middle | Application: | BLDC Motor Manufacturing |
| Highlight: | Linear Stator Coil Winding Machine,Three-pin Stator Coil Winding Machine,Automatic Stator Coil Winding Machine |
||

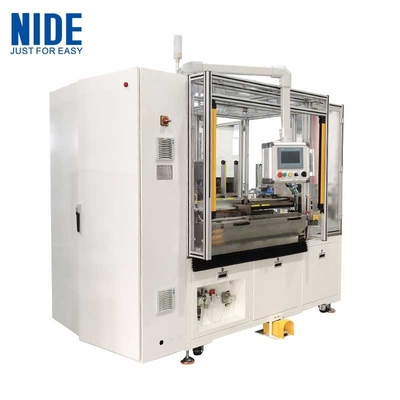

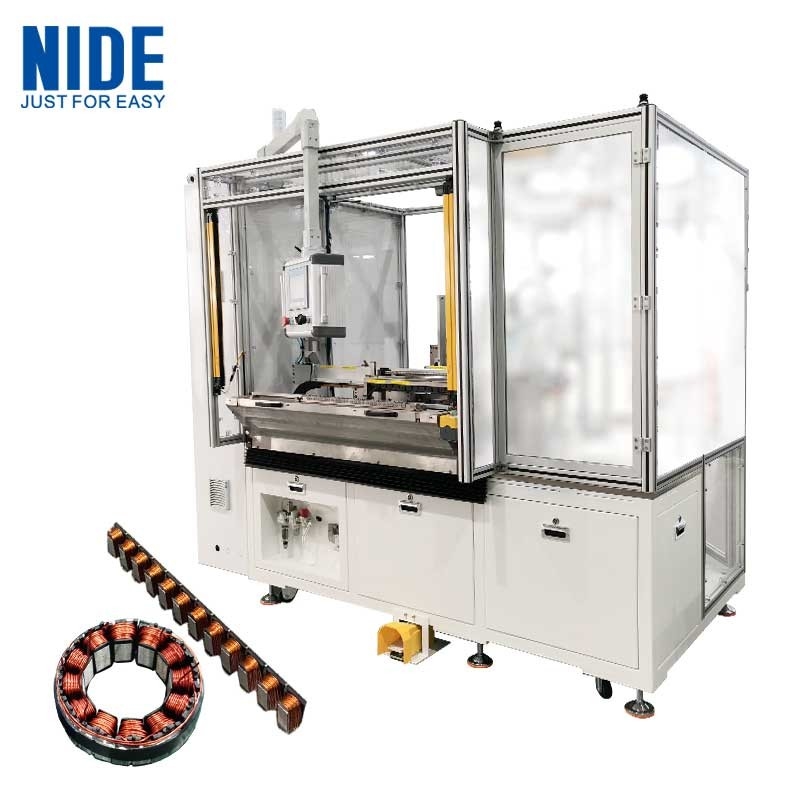

This BLDC needle winding machine is used for three-pin straight winding process. Used for multi-pole linear stator winding: the equipment can wind 3-slot stators at the same time with each movement, greatly improving production efficiency. Suitable for BLDC motor segmented and linear stator coil winding.
1. Used for multi-pole stator winding: the equipment can wind 3-slot stators at the same time with each movement, greatly improving production efficiency.
2. Manual loading and automatic mold clamping which reduce the manual efforts.
3. The winding process can realize multiple tapping (screen settings), thread clamping, and thread trimming functions.
4. The number of slots and turns can be set through the human-machine interface.
5. Different molds can be replaced to match with the different specifications of the stator to be produced. The winding parameters can be used for different stators and the winding parameters can be quickly switched through the human-machine interface to comply with the requirements of different stators.
6. The equipment has alarm output function.
7. Safety performance: This machine adopts safety protection system and safety door switch protection. Dual start, safety guards for picking and placing materials.

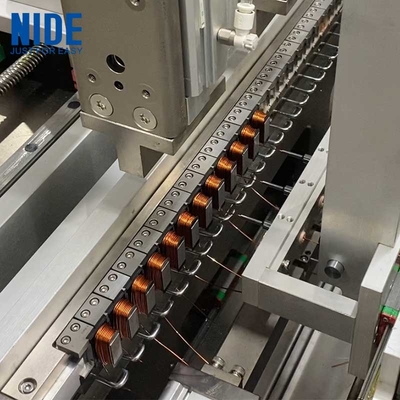

8. Used for straight stator winding, manual loading and unloading, automatic clamping, automatic winding, automatic pole changing, automatic tapping, automatic hooking, pneumatic cutting of the first and last wires.
9. The equipment has single action/stepper/automatic mode which can be converted into each other. Suitable to operate the three winding methods (Consecutive poles / Complete phases / Complete stator) in the attachment.
10. Full sheet metal plus PC board protection.
| Production name : | Three-pin Linear Stator Coil Winding Machine |
| Max Stator diameter: | Up to 120 mm |
| Stack length: | Up to 50 mm |
| Teeth number: | Up to 36 slots |
| Wire diameter: | Up to 1.6mm (tensioner needs to be replaced for different wire diameter ranges) |
| Winding method: | suitable to operate the three winding methods (Consecutive poles / Complete phases / Complete stator) |
| Production cycle time: | MAX 80sec. |
| The passing rate of winding: | ≥ 99 %. |
| Cycle Time: | ≤80 sec/piece (12 poles) |
| Air pressure: | 0.4～0.7 MPa |
| Power supply: | 380V/50HZ three-phase four-wire |
| Total power: | 12 KW |
| Dimensions: | Length1850*width2350*height1800mm |
| Weight: | About 950Kg |
