| Place of Origin: | China |
| Brand Name: | Nide |
| Model Number: | RXL1-220N |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | The stator winding machine is suitable for sea transportation |
| Delivery Time: | 35 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 120 sets per year |
| Certification: | Main Electric Components Are CE Certificated. | Product Name: | EV Motor Stator Winding Machine |
|---|---|---|---|
| Type: | Motor Stator Coil Winding Machine | Working Stations: | Two |
| Application: | Electric Motor Stator | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Type: | Automatic | Color: | Cusotmized |
| Voltage: | 380V | Size: | Middle |
| High Light: | EV Motor Stator Winding Machine,Automatic Motor Coil Winding Machine,380V Automatic Coil Winding Machine |
||
Automatic EV Motor Stator Winding Machine Motor Coil Winding Machine
This motor stator winding machine is mainly used for EV motor manufacturing.Suitable for new energy vehicle motors, electric motorcycle motors, electric vehicle motors, electric tricycle motors, and electric rickshaw motors.
The mold adopts a modular design, and the winding adopts a dual-mode rotary winding mechanism with a three-axis mechanical arm wiring mechanism to achieve uniform arrangement of the windings into the wire-embedding mold.
It has the function of automatic alarm for whether the U, V and W phases of the workpiece are embedded in the set one of the wrong phases and automatic identification of whether the stator is in place, that is, the incoming material foolproof function.
The wound wire package is evenly arranged and has no cross, which is convenient for wire embedding. It solves the problem of irregular winding when the multi-strand electromagnetic wire is wound in the ordinary threading machine.
It is convenient and quick to disassemble and replace during maintenance or product change.
EV Motor Winding Machine Technical Data
| Product name: | Automatic EV motor winding machine/Coil winder |
| Max stack height: | 100mm |
| Max stack OD: | 160mm |
| Wire diameter: | 0.2~1.2mm |
| Winding speed: | ≤2500RPM |
| Power supply: | 380V/50/60HZ 7KW |
| Dimension: | L2400*W1000*2450mm |
| Weight: | about 1200kg |
We can customize the machine according to your needs, please feel free to contact us.

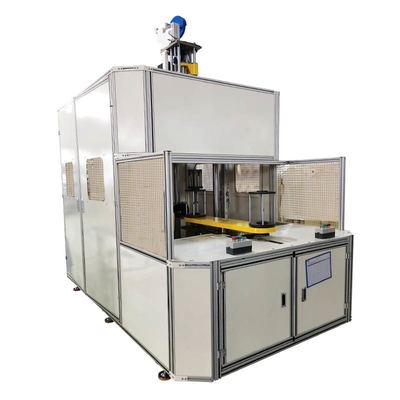

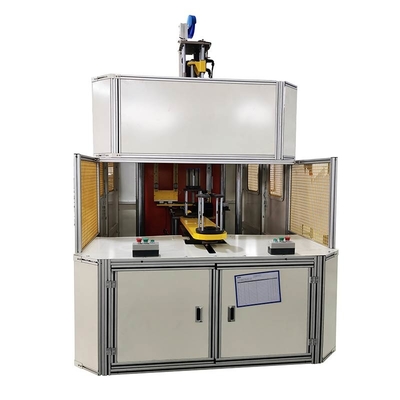

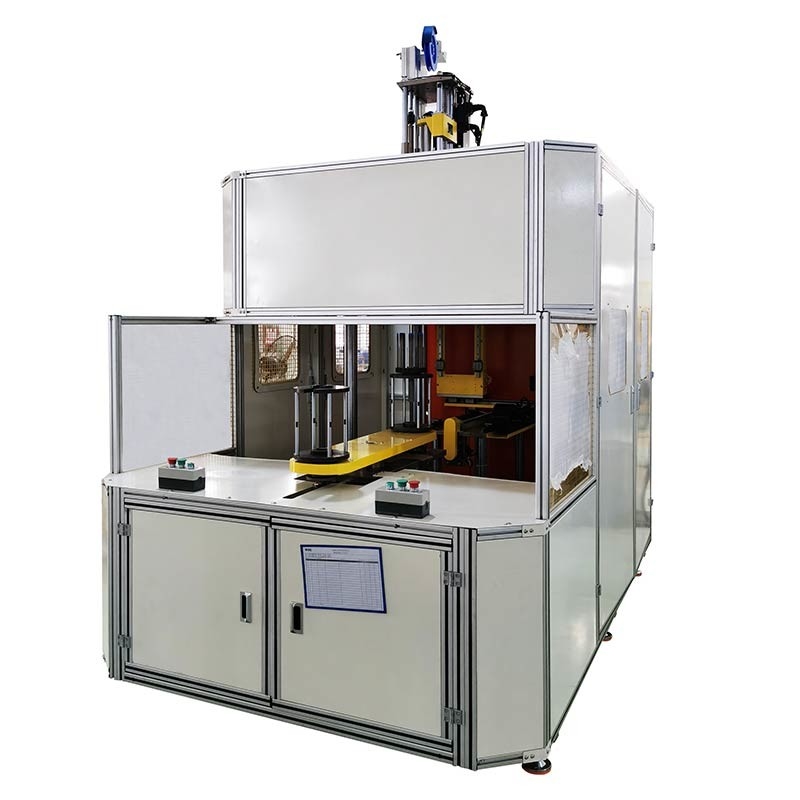

EV Motor Winding Machine Picture Show
