| Place of Origin: | China |
| Brand Name: | Nide |
| Certification: | None |
| Model Number: | R1QL1-120-150N |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case suitable for sea transportation |
| Delivery Time: | 35 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 sets per month |
| Product Name: | Auto Motor Winding Machine | Condition: | New |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Color: | According To Customer Requirement |
| Type: | Fully Automatic | Application: | Automobile Car Motor Stator Coil Winding |
| Highlight: | air coil winding machine,coil winding machinery |
||

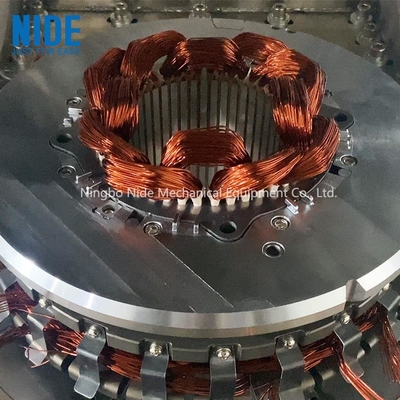

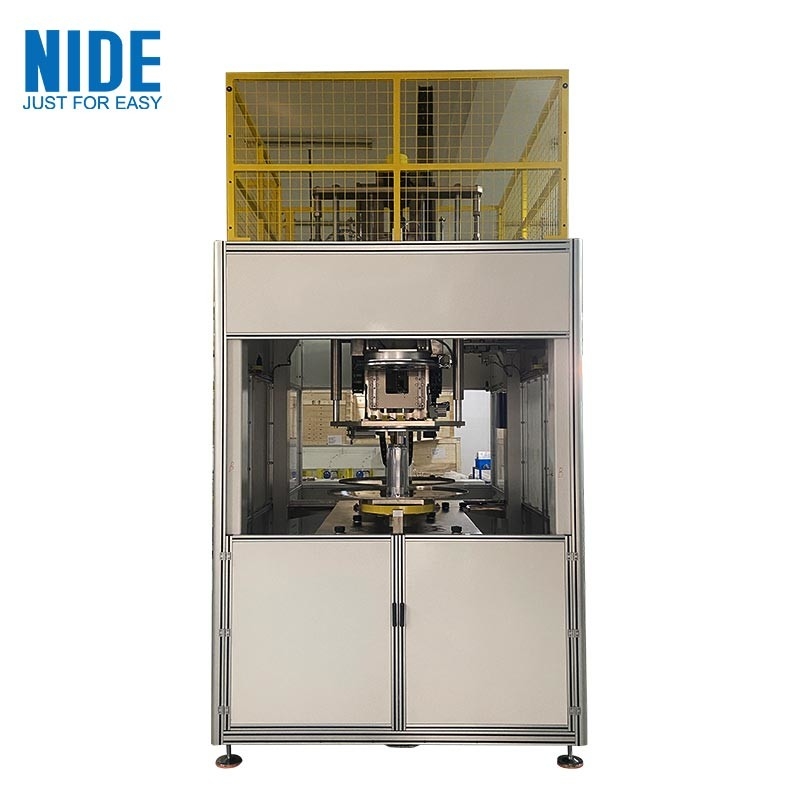

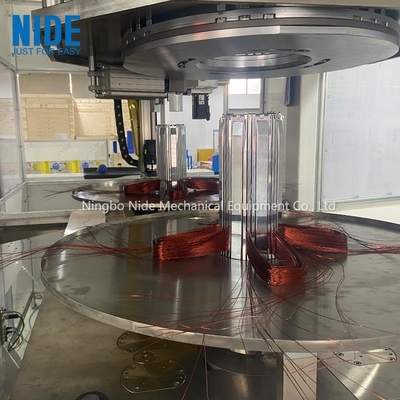

The EV Car New Energy Motor coil winding and inserting station is controlled by the dual-power servo motor, and the parameters such as winding, pushing the line, pushing the height of the paper, and changing the product stack thickness can be set on the touch screen.The EV Car New Energy Motor machine has one automatic motor coil winding stations and one stator coil inserting station. During winding, the motor stator copper wire will be auto wound to the tooling, so as to avoid the wire damage and snap caused by wire cross and disorder during manual wire transfer.With automated coil winding and insertion wokring automatic combination, the stator coil winding and inserting machine will be save labor cost, high efficiency, and can fulfill the 2-pole, 4-pole and 6-pole three-phase motor coil winding.
| Product name : | EV Car New Energy Motor stator coil winding and inserting machine |
| Stack Height: | 30-120mm |
| Appropriate Wire: | φ0.2-φ1.2mm |
| Stator OD: | ≤φ150mm |
| Stator ID: | 40-110mm |
| Motor Winding stations: | 1 |
| Stator Coil inserting stations: | 1 |
| Winding inserting mode: | chained /same core |
| Power supply: | 380V 50/60Hz |
| Air pressure: | 0.6-0.8 MPa |
| Watt : | 5Kw |
| Weight : | ≈2200Kg |
| Dimension: | (L)2200×(W)1500×(H)2200mm |
