Automatic Motor Stator Coil Inserting Machine Middle Size

Automatic Motor Stator Coil Inserting Machine Middle Size

  • Automatic Motor Stator Coil Inserting Machine Middle Size
  • Automatic Motor Stator Coil Inserting Machine Middle Size
  • Automatic Motor Stator Coil Inserting Machine Middle Size
Automatic Motor Stator Coil Inserting Machine Middle Size
Product Details:
Place of Origin: China
Brand Name: Nide
Certification: None
Model Number: R2QL1-120-150M
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 60 working days
Payment Terms: T/T, L/C
Supply Ability: 120 sets per year
Contact Now
Detailed Product Description
Condition: New Pitch Time: ≤40s/pc
Height Of Coil: 3 Stator OD: ≤φ150mm
Appropriate Wire: φ0.18-φ1.2mm Machine Size: Middle
After-sales Service Provided: Engineers Available To Service Machinery Overseas Warranty: 1 Year
High Light:

Automatic Motor Stator Coil Inserting Machine

,

Automatic Stator Winding Inserting Machine

,

40s/pc Stator Winding Inserting Machine

Automatic New Energy Motor Stator Winding And Inserting Machine

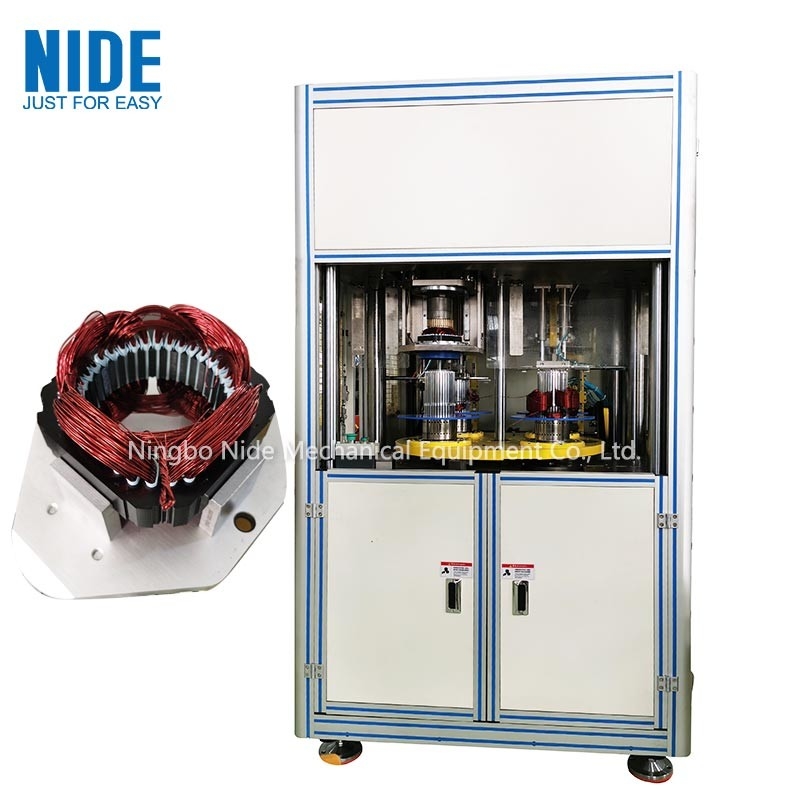

The automatic stator winding and inserting machine is suitable for new energy motor stator manufacturing. Adopts 4 stations design with 3 coil winding and 1 coil insertion. it can save labor cost, high efficiency, and can fulfill the 2-pole, 4-pole and 6-pole three-phase motor coil winding. The new energy motor stator winding and inserting machine is mature in technology, advanced in technology, reliable in quality, and convenient to use and maintain.

1. New Energy Motor Stator Winding And Inserting Machine Application

This motor stator coil winding and insertion machine is suitable for new energy motor, miniature induction motors , air conditioner motors, washing machine motors, compressor motors, fan motors, generator motors, pump motors, etc.



2. New Energy Motor Stator Winding And Inserting Machine Features and Functions



The automatic stator coil winding and insertion machine adopts a full set of servo motor drive to ensure the accuracy and stability of the machine operation. The coil insertion station adopts dual power push line to meet the production of high slot full rate products.



The stator coil windier and insertion machine is specially designed for the stator winding of motor, and integrates winding, grooved wedge and ruled line.

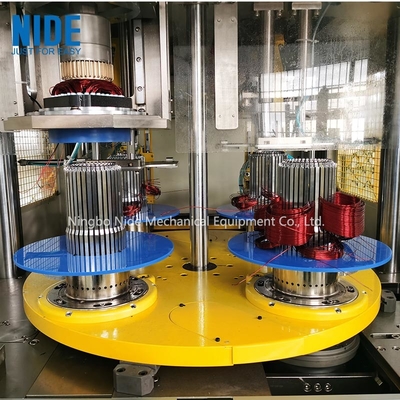

The stator coil windier and insertion machine adopts four-station design with three-head winding and one-head coil inserting. With 4 stations working at the same time, The machine will be save labor cost, high efficiency, and can fulfill the 2-pole, 4-pole and 6-pole three-phase motor coil winding.



This machine can simultaneously realize two sets of wires to be wound at the same time, and adds two insulation paper inserting stations, which realizes the function of adding the phase insulation at the same time, and reduces the manual operation of the post process.



During winding, the coil will be auto wound to the tooling, so as to avoid the wire damage and snap caused by wire cross and disorder during manual wire transfer.



The coil winding and inserting station is controlled by the dual-power servo motor, and the parameters such as winding, pushing the line, pushing the height of the paper, and changing the product stack thickness can be set on the touch screen.





3. New Energy Motor Stator Winding And Inserting Machine Technical Parameters



Product name Automatic new energy motor stator winding and inserting machine
Appropriate Wire φ0.2-φ1.2mm
Stack Height 30-80mm
Stator OD ≤φ150mm
Stator ID 40-80mm
Winding stations 3
Coil inserting stations 1
Winding inserting mode chained / same core
voltage 380V 50/60Hz
Power 15Kw
Dimension (L)4050×(W)3000×(H)2500mm
Weight ≈4000Kg
