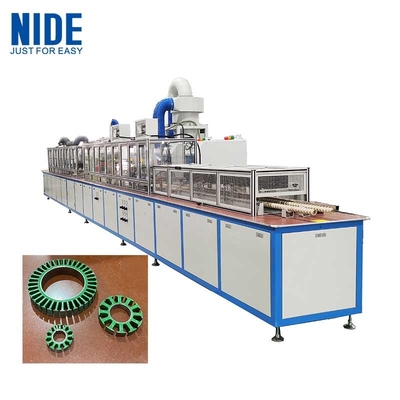

Motorcycle Electrostatic Armature Powder Coating Machine System Three Phase

Motorcycle Electrostatic Armature Powder Coating Machine System Three Phase

  • Motorcycle Electrostatic Armature Powder Coating Machine System Three Phase
Motorcycle Electrostatic Armature Powder Coating Machine System Three Phase
Product Details:
Place of Origin: China
Brand Name: Nide
Certification: None
Model Number: ND-JF-100
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 60 working days
Payment Terms: T/T, L/C
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Name: Armature Powder Coating Machine Type: Electrostatic Powder Coating
Function: Powder Coating Armature Lamination Condition: New
Application: Middle And Small Size Rotor Package: Wooden Case
Customized Service: Provided
High Light:

powder coating equipment

,

powder coating machinery



Motorcycle Electrostatic Armature Powder Coating Machine System Three Phase





Quick Detail:

1. This machine is consisted of two set of equipment, one is power coating machine, the other is powder recycling machine.

2, This power coating machine is widely used in mini rotor insulating coating, such as automotive, motorcycle, power cycle, toy and small electromotor of appliance.

3, This machine is the most technical advanced product in electrostatic coating field



Description:

Armature Power Coating Machine Armature Slot Electrostatic Coating

ND-JF 90G armature slot insulating power coating machine is the most technical advanced product in electrostatic coating field, which is widely used in mini rotor insulating coating, such as automotive, motorcycle, power cycle, toy and small electromotor of appliance.

Working procedure:
Small motor is transported to fluid bed by screw for coating. Insulation power is equally coated on its surface, and then cured by high frequency heating. This machine consists of coating, curing, cooling and powder recycling. Except loading and unloading, the other processes are completed automatically.



Specifications :

Working piece max O.D:

120mm

Working piece max stack length

70mm

Working piece max shaft length

180mm

Recycle efficiency

≥95%

Production efficiency:

1500pcs/hour

Coating thickness:

0.15mm-0.5mm adjustable

Line speed m/min:

0.1-1.5m adjustable

Screw rod length

3500mm

Feeding speed

0~0.5RPM

Static voltage

0~60KN

Static current

≤200μA

Air source pressure

0.5~0.7MPa

Voltage

380V three phase

High frequency power

30KW

Total dimension

4900mm*2500mm*2000

Weight

3000Kgs



Applications:

This machine is widely used in mini rotor insulating coating, such as automotive, motorcycle, power cycle, toy and small electromotor of appliance.



Competitive advantages:

This machine has a wide application, and easy for operation. The coated armature has shiny surface, even thickness, good electricity performance.



Motorcycle Electrostatic Armature Powder Coating Machine System Three Phase 0

Motorcycle Electrostatic Armature Powder Coating Machine System Three Phase 1
