| Place of Origin: | china |
| Brand Name: | Nide |
| Certification: | ce |
| Model Number: | ND-JF-90G-A |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Wooden case which is suitable for sea transport |
| Delivery Time: | 60 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 sets per year |
| Color: | White Or Customized | Condition: | New |
|---|---|---|---|
| Used For: | Mini Rotor Insulating Coating | Max Production: | 1500pcs/hour |
| Weight: | 3000kg | Type: | Large |
| Highlight: | powder coating equipment,automatic powder coating machine |
||

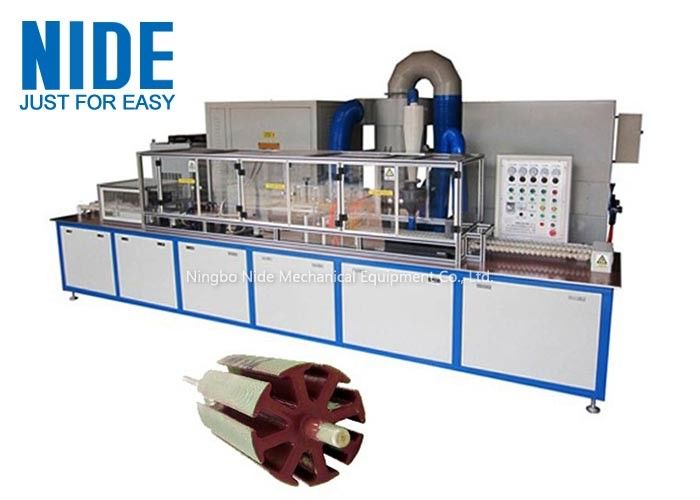

Servo epoxy powder coating machine With the touch screen for armature rotor
(1) Applications:

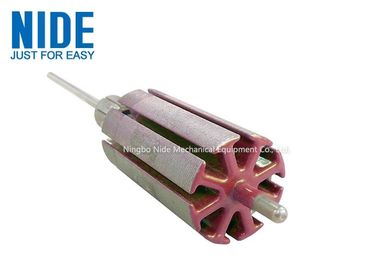

This automatic armature epoxy powder coating machine is widely used in mini rotor insulating coating, such as automotive, motorcycle, power cycle, toy and small electromotor of appliance.
(2) Main technical data:
| Production name | ND-JF-90G-AArmature epoxy power coating machine |
| Working piece max O.D | 120mm |
| Working piece max stack length | 70mm |
| Working piece max shaft length | 180mm |
| Recycle efficiency | ≥95% |
| Production efficiency | 1500pcs/hour |
| Coating thickness | 0.15mm-0.5mm adjustable |
| Line speed m/min | 0.1-1.5m adjustable |
| Screw rod length | 3500mm |
| Feeding speed | 0~0.5RPM |
| Static voltage | 0~60KN |
| Static current | ≤200μA |
| Air source pressure | 0.5~0.7MPa |
| Voltage | 380V three phase |
| High frequency power | 30KW |
| Total dimension | 4900mm*2500mm*2000 |
| Weight | 3000Kgs |
(3) Machine function and characteristic
This rotor powder coating machine has a wide application, and easy for operation. The coated armature has shiny surface, even thickness, good electricity performance.

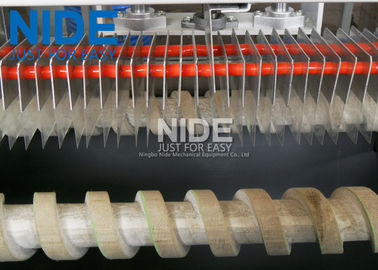

Small motor is transported to fluid bed by screw for coating. Insulation power is equally coated on its surface, and then cured by high frequency heating. This machine consists of coating, curing, cooling and powder recycling. Except loading and unloading, the other processes are completed automatically.
With the touch screen price of powder coating machine,price of powder coating machine,coating systems,how to powder coating
Contact Person: Herbert
Tel: +8615067409300
