Place of Origin: | CHINA |
Brand Name: | nide |
Certification: | CE |
Model Number: | ND-JF-80GG |
Minimum Order Quantity: | 1 set |
---|---|
Price: | negotiable |
Packaging Details: | Wooden case suitable for sea transportation |
Delivery Time: | 60 days |
Supply Ability: | 120 sets / year |
NAME: | Armature Powder Coating Machine For | COLOR: | Customize |
---|---|---|---|
Condition: | New | Used For: | Mini Rotor Insulating Coating |
Type: | Middle | ||
Highlight: | powder coating equipment,automatic powder coating machine |

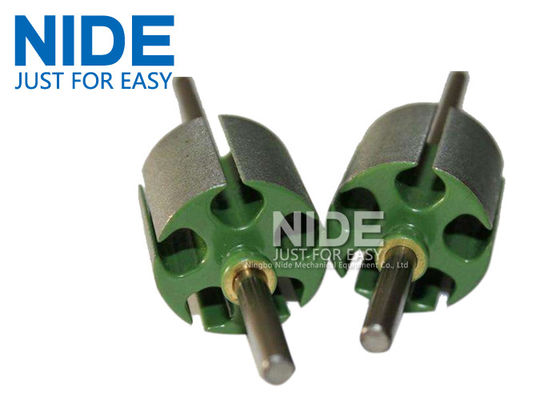

Mini rotor epoxy powder insulating coating machine for armature rotor automotive motorcycle
(1) Machine function and characteristic of the armature/rotor powder coating machine
This automatic armature rotor epoxy powder coating machine has a wide application, and easy for operation. The coated armature has shiny surface, even thickness, good electricity performance.
Small motor is transported to fluid bed by screw for coating. Insulation power is equally coated on its surface, and then cured by high frequency heating. This machine consists of coating, curing, cooling and powder recycling. Except loading and unloading, the other processes are completed automatically.
(2) Main technical data of the armature/rotor powder coating machine
Working piece max O.D: | 120mm |
Working piece max stack length | 70mm |
Working piece max shaft length | 180mm |
Recycle efficiency | ≥95% |
Production efficiency: | 1500pcs/hour |
Coating thickness: | 0.15mm-0.5mm adjustable |
Line speed m/min: | 0.1-1.5m adjustable |
Screw rod length | 3500mm |
Feeding speed | 0~0.5RPM |
Static voltage | 0~60KN |
Static current | ≤200μA |
Air source pressure | 0.5~0.7MPa |
Voltage | 380V three phase |
High frequency power | 30KW |
Total dimension | 4900mm*2500mm*2000 |
Weight | 3000Kgs |
(3) Applications of the armature/rotor powder coating machine
This rotor powder coating machine is widely used in mini rotor insulating coating, such as automotive, motorcycle, power cycle, toy and small electromotor of appliance.
