2 Poles 3 Phase Motor Winding Machine Upgraded Model With CE Standard
Home ProductsStator Winding Machine

2 Poles 3 Phase Motor Winding Machine Upgraded Model With CE Standard

2 Poles 3 Phase Motor Winding Machine Upgraded Model With CE Standard

  • 2 Poles 3 Phase Motor Winding Machine Upgraded Model With CE Standard
  • 2 Poles 3 Phase Motor Winding Machine Upgraded Model With CE Standard
  • 2 Poles 3 Phase Motor Winding Machine Upgraded Model With CE Standard
  • 2 Poles 3 Phase Motor Winding Machine Upgraded Model With CE Standard
2 Poles 3 Phase Motor Winding Machine Upgraded Model With CE Standard
Product Details:
Place of Origin: china
Brand Name: NIDE
Certification: ce
Model Number: ND-SQ2003ST
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: The stator winding machine is suitable for sea transportation
Delivery Time: 60 days
Payment Terms: 150 set per year
Supply Ability: 100 set per year
Contact Now
Detailed Product Description
Name: Three Stations Stator Winding Machine Main Color: RAL 9003
Motor Power: 4KW Weight: About 1.5T
Pole: 2poles
High Light:

transformer winding machine

,

motor winding machine

NIDE upgraded model three stations stator winding machine with 2 poles





1. Main function and feature

The stator coil winding machine hasThree winding stations

The winding mahcine Automatic feed, press stator tight, assemble fixture, wind, clamp and cut wire

There 6pcs stator stations: left and right moving to load/unload, when three winding stations do winding, the other three stations is ready for loading/unloading

Protective cover: adapts robust aluminium alloy section

Wire end length can be adjustable, it can have tapping function if required

Casted frame, stable accuracy, good vibration absoption.

High efficiency





2.Main technical parameter

Machine size:1600X1700X1830(LXWXH)(exclude wire holder)

2400X1700X1830 (LXWXH)(include wire holder)

Stator OD:50~90mm(can be customized)

Stack length:20~60mm(can be customized)

Stator ID:30~50mm(can be customized)

Rated efficiency:if wind 0.32mm/300turns,52~55sec/3pcs

Travelling distance:135-190mm adjustable(standard model)

150-220mm(lengthen model)

Speed:0-550rpm adjustable

Wire diameter:copper wire 0.25- 0.9mm(can be customized)

Pole:2poles

Motor power:4KW

Voltage:three phase 380V

Air pressure:0.4~0.7MPa

Machine weight:about 1.5T

One people operate one machine,manually load/unload

Change-over:30mins





3.Standard electric configuration

There is protection cover for the moving unit

There is safety alarm indicator for necessory position

There is emergency button, once it’s pressed down, the machine will be powered off

There is safety switch for each safety door, the safety door can’t be opened in auto mode





4.Machine color

Alarm indicator: yellow

Main color: RAL 9003

Safety door: organic transparent glass

Aluminium profile has blue inlaid strip

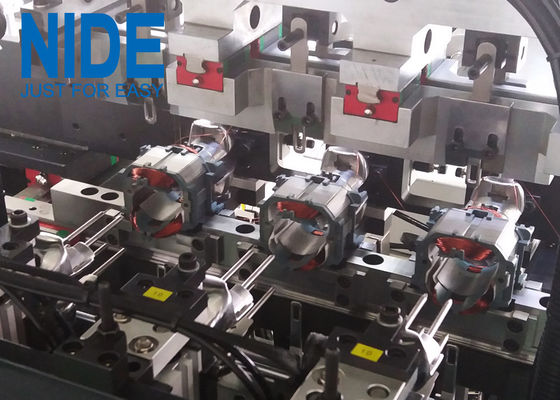

The 2 pole motor winding machine has 3 stator coil winding working stations wo winding the coils2 Poles 3 Phase Motor Winding Machine Upgraded Model With CE Standard 0
