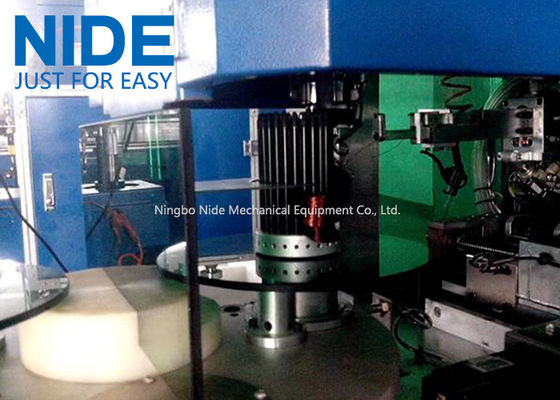

Automatic coil winding machine for 2 pole 4 pole and 6 poles stator

Automatic coil winding machine for 2 pole 4 pole and 6 poles stator

  • Automatic coil winding machine for 2 pole 4 pole and 6 poles stator
  • Automatic coil winding machine for 2 pole 4 pole and 6 poles stator
  • Automatic coil winding machine for 2 pole 4 pole and 6 poles stator
  • Automatic coil winding machine for 2 pole 4 pole and 6 poles stator
  • Automatic coil winding machine for 2 pole 4 pole and 6 poles stator
Automatic coil winding machine for 2 pole 4 pole and 6 poles stator
Product Details:
Place of Origin: China
Brand Name: Nide
Certification: CE
Model Number: RXL2-160
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 800 sets per year
Contact Now
Detailed Product Description
Name: Automatic Winding Machine Station: Two
Condition: New Structure: Vertical Type
High Light:

electric motor coil winding machine

,

air coil winding machine

Automatic winding machine for 2 poles 4 poles and 6 poles stator





Description:

Automatic Winding wire Machine is a kind of single-head and double-station automatic winding machine; automatically put the coil into tradsfer former orderly; especially suitable for high slot filling rate, small notch stator; winding mode such as automatic skip, automatically cutting and automatic indexing can be finished at the same time successively; parameter could be set in human-machine interface, winding tension is adjustable; obtain continuous/discontinuous winding way and meets the 2 poles, 4 poles and 6 poles coils winding,





Quick Detail:

1. This automatic staor coiling winding machine is equipped with two winding heads.
2. The automatic stator coiling winding machine can wind the coils into the winding form orderly.
3. The automatic stator coiling winding machine is high automation and easy for operating.


Technical data:
Wire diameter range 0.2-1.2mm
Fly fork diameter 300mm
Winding head 1
Max stack height 100mm
Max stator OD 160mm
Jump file number 1-5
Max RPM 2000RPM
Air pressure 0.4mpa
Power supply 380V- 50/60HZ 7KW
Weight 1000kg
Dimension 1500 X600 X2200mm







Competitive advantages:

Variety of application, easy operation.



Coil Winding Machine working process

Automatic coil winding machine for 2 pole 4 pole and 6 poles stator 0
