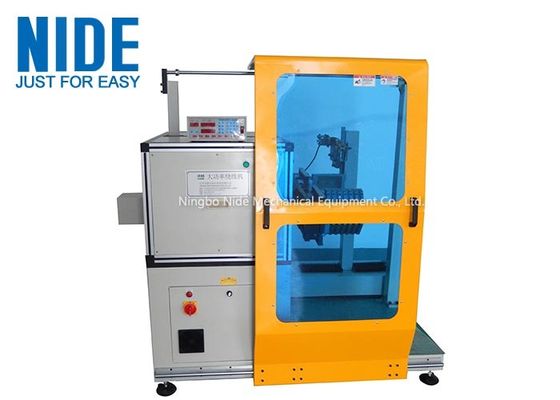

Name: Big Coil Stator Winding Machine Working Station: Single Working Station
Application: Pump Or Big Type Motor Certificate: CCC
Customized Service: Available
Highlight:

air coil winding machine

,

coil winding machinery



Big Coil motor stator winding machine/ Automatic Coil Winding Machine



Quick Detail:

1. This big motor coil motor stator winding machine is suitable for big stator, pump motor or heavy motor stators.
2. This stator winding machine can automatically wind stator coils.
3. After coil winding, the tooling can be extend so that easy to unload coils.
4. This coil winding machine could produce different dimension coils which is for same series size stator by adjusting the tooling.



Description:

Automatic Coil Winding Machine adopts special purpose controller to realize the function of auto winding, auto arraying, slot acrossing, auto getting through wax tube and output setting, etc. This Big Coil Winding Machine is suitable for winding the coil for big power motor. Big Stator Coil Winding Machine could produce different dimension coils which is for same series size stator by adjusting the tooling, and tension is adjustable.



Technical parameter:

Swing diameter

≤450mm

Effective length of the tooling

≤400mm

Parallel wire number

≤16 pcs

Wire diameter

0.3~1.2mm

Wire arraying width

400mm

Power supply

220V/50/60Hz 2.2KW

Air supply

0.4~0.6MPa

Weight

950Kg

Dimension:

1500*1700*1550mm





Information needed for big coil winding machine inquiry
It will be better if customer could send us detailed drawing including below information.
1. Stator drawing
2. Stator winding drawing
3. Winding distribution drawing
4. Other technical requirement
If possible, it will be better if customer can send us samples.



Stator coil winding machine working process
