Fan Stator Coil Winding Machine , Automatic Motor Coil Winding Machine

Fan Stator Coil Winding Machine , Automatic Motor Coil Winding Machine

  • Fan Stator Coil Winding Machine , Automatic Motor Coil Winding Machine
  • Fan Stator Coil Winding Machine , Automatic Motor Coil Winding Machine
  • Fan Stator Coil Winding Machine , Automatic Motor Coil Winding Machine
  • Fan Stator Coil Winding Machine , Automatic Motor Coil Winding Machine
Fan Stator Coil Winding Machine , Automatic Motor Coil Winding Machine
Product Details:
Place of Origin: China
Brand Name: Nide
Certification: None
Model Number: R2QL1-120-150M
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 35 working days
Payment Terms: T/T, L/C
Supply Ability: 120 sets per year
Contact Now
Detailed Product Description
Name: Stator Coil Winding Machine Application: Fan, Table Fan, Fan Motor
Function: Wind Coils Into Stator Slot Working Station: Two
Dimension: 1350mm*630mm*1130mm Type: Automatic Stator Coil Winding Machine
High Light:

electric motor coil winding machine

,

air coil winding machine

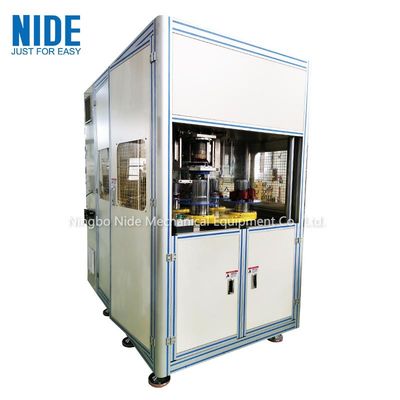

Fan Stator Coil Winding Machines / Automatic Coil Winding Machinery

Quick Detail:


1. This stator coil winding machine is suitable for winding coil of ceiling fan table stator, table fan motor ,fan motor and external armature.
2. This coil winding machine is used to wind copper wire into stator slots.
3. This stator coil winding machine has two coil winding working stations, and one coil winding inserting machine




Description:

Table Fan Motor Coil Winding Machine has two working stations and one coil winding inserting machine. It could achieve auto winding, auto array, auto indexing; array and indexing is controlled by stepping motor, winding is controlled by frequency converting motor, turn number could be accurate up to 0.1 round.





Technical paramter:

Wire diameter

0.05~0.45mm

Stator O.D

100~163mm

Slot number

Less than 24 slots

Stack height

6~30mm

RPM

Max 2500RPM

Voltage

380v/50Hz, or customize

Power

AC 15KW

Weight

4000Kg

Dimension

(L)4050×(W)3000×(H)2500mm


Application:
The Fan Motor Coil Winding Machine is suitable for winding table fan stator, external armature such as frequency conversion alternator and generator armature.



Information needed for Automatic Stator Coil Winding Machine inquiry
It will be better if customer could send us detailed drawing including below information.
1. Stator drawing
2. Stator winding drawing
3. Winding distribution drawing
4. Other technical requirement
If possible, it will be better if customer can send us samples.



Stator wound by this table fan winding machine

ceiling fan motor winding machine

ceil fan stator winding machine for motor coil winding manufacturing
