| Place of Origin: | China |
| Brand Name: | Nide |
| Certification: | None |
| Model Number: | RXL7-100 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case suitable for sea transportation |
| Delivery Time: | 60 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100set |
| Certificate: | CCC | Working Station: | Four Working Station |
|---|---|---|---|
| Customized Service: | Available | HS: | 8479811000 |
| High Light: | air coil winding machine,coil winding machinery |
||
Winding head |
2pc |
Wire diameter |
0.18~1.2mm |
Winding speed |
≤2500RPM |
Max stack OD |
200mm |
Max stack height |
150mm |
Fly fork diameter |
400mm |
Transfer number |
1~5 section |
Power supply |
380V/50/60HZ 7.5KW |
Weight |
about 2000kg |
Dimension |
L1900*W1100*2100mm |
(3) Machine main function and characteristic

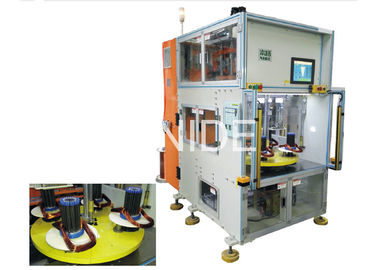

This machine has two winding heads with four working station. The main phase and auxiliary phase can be wound simultaneously. It is suitbale for high production capacity, high slot filling rate, small slot opening stator coil winding. Different winding mode can be selected in the touch screen, like auto skip, auto cutting and auto indexing. Other parameter also can be set in the touch screen, like continuous/discontinuour winding method.
(4) Competitive advantages
Variety of application, easy operation.
We have Overseas Service Center.
Machine is controlled by PLC. All the parameter can be set in the touch screen.
It is suitable for stators with different model number and dimension.
The operation and tooling change process is easy.
We could customize machine for our customer as per their requirement.
We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.

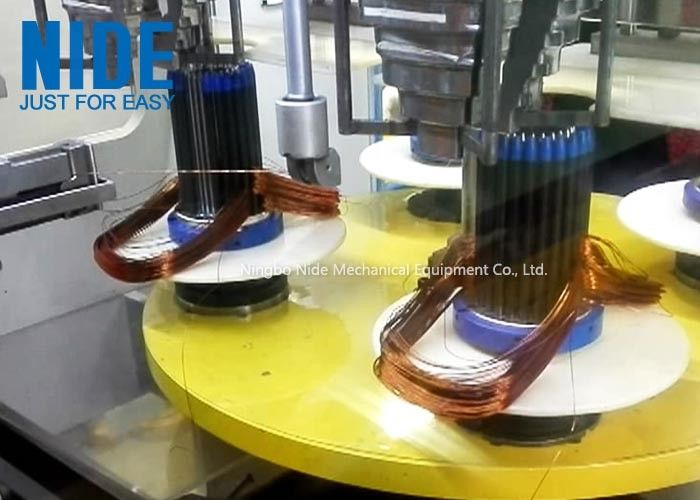

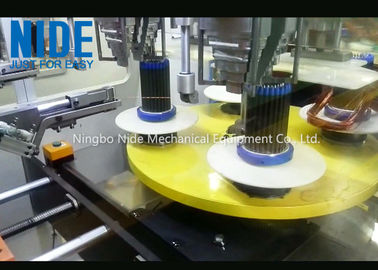

Machine working station, click picture to vide video
