| Place of Origin: | China |
| Brand Name: | Nide |
| Certification: | NONE |
| Model Number: | ND-SW03C |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Wooden case which is suitable for sea transport |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 160 sets per year |
| Stator ID: | 10-50mm | Stator OD: | 30-80mm |
|---|---|---|---|
| Total Power: | 8.5 KW | Winding Station: | One |
| Weight: | About 550 Kg | Dimension: | 1200*900*1650mm |
| High Light: | Automatic Stator Coil Winding Machine,3 Needles Coil Winding Machine,BLDC Motor Coil Winding Machine |
||

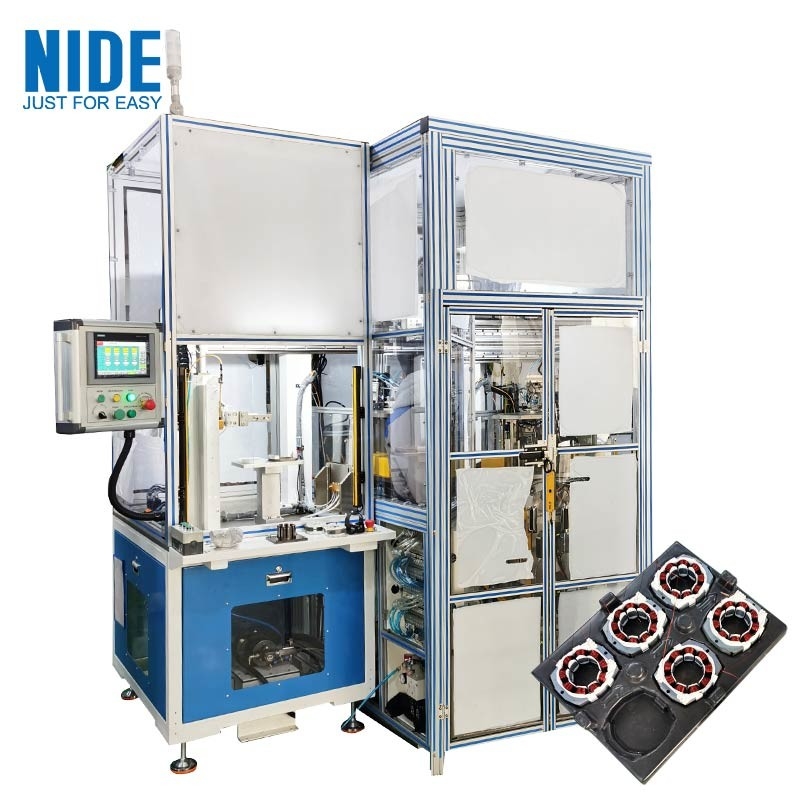

Automatic BLDC Motor 3 Needles Coil Winding Machine
This BLDC stator winding machine is suitable for winding the servo motor stator coil. It adopts 3 needle-type inner winding technolgy design and single-station operation. During winding, 3 slots can be wound at the same time. The manipulator automatically picks up the stator, reducing labor. cost. The whole coil winding process is automatic, efficient and safe, 3 strands are wound at the same time, the maximum speed can reach 1200 revolutions per minute, different types of brushless stators can be wound according to customer requirements, this inner winding machine has self-diagnosis function.
BLDC stator winding machine Specification:
| Product name : | Servo motor BLDC stator coil winding machine |
| Wire dia.: | 0.15-0.7mm(can be customized) |
| BLDC Stator ID: | 10-50mm |
| BLDC Stator OD: | 30-80mm |
| BLCD Stator Stack- length: | 5-60mm |
| Winding speed: | 50-1100 r/min |
| Winding method: | three needle winding |
| Winding station : | one |
| Aire pressure: | 0.5MPa~0.7 MPa |
| Power: | 380V/50HZ, three phase four wires |
| Total power: | 8.5 KW |
| Weight: | about 550 Kg |
| Dimension: | 1200*900*1650mm |

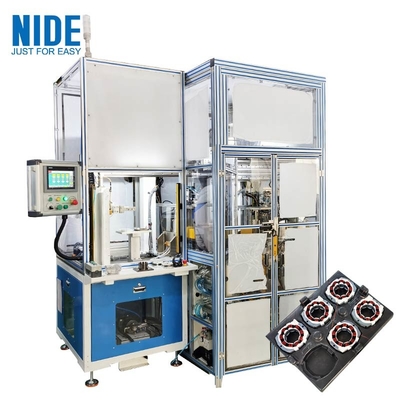

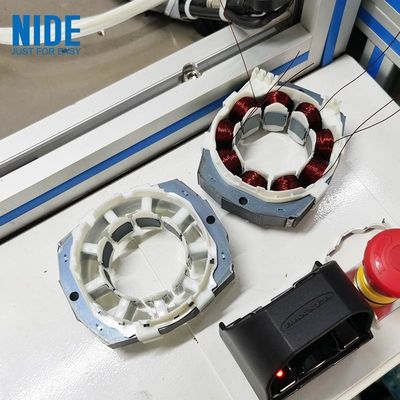

needle winding machine Picture display
