New Energy Stator Winding Inserting Machine 4 Stations

New Energy Stator Winding Inserting Machine 4 Stations

  • New Energy Stator Winding Inserting Machine 4 Stations
  • New Energy Stator Winding Inserting Machine 4 Stations
  • New Energy Stator Winding Inserting Machine 4 Stations
New Energy Stator Winding Inserting Machine 4 Stations
Product Details:
Place of Origin: China
Brand Name: Nide
Certification: None
Model Number: R3QL1-120-150M
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 60 working days
Payment Terms: T/T, L/C
Supply Ability: 120 sets per year
Contact Now
Detailed Product Description
Condition: New Pitch Time: ≤40s/pc
Height Of Coil: 3 Stator OD: ≤φ150mm
Appropriate Wire: φ0.18-φ1.2mm Machine Size: Middle
After-sales Service Provided: Engineers Available To Service Machinery Overseas Warranty: 1 Year
High Light:

4 Stations Stator Winding Inserting Machine

,

New Energy Stator Winding Inserting Machine

,

40s/pc Motor Stator Coil Inserting Machine

4 Stations New Energy Motor Stator Coil Winder And Insertion

1. New Energy Motor Stator Coil Winder And Insertion Application

This motor stator coil winding and inserting machine is suitable for new energy motors, induction motors , air conditioner motors, washing machine motors, compressor motors, fan motors,etc.



2. New Energy Motor Stator Coil Winder And Insertion Technical parameters

Product name : 4 Stations New Energy Motor Stator Coil Winder And Insertion
Stator OD : ≤φ150mm
Stator ID : 40-80mm
Stack Height : 30-80mm
Appropriate Wire : φ0.2-φ1.2mm
Winding stations : 3
Winding inserting mode : chained /same core
Power : 15Kw
Voltage : 380V 50/60Hz
Dimension : (L)4050×(W)3000×(H)2500mm
Weight : 4500Kg

3. New Energy Motor Stator Coil Winder And Insertion Picture show

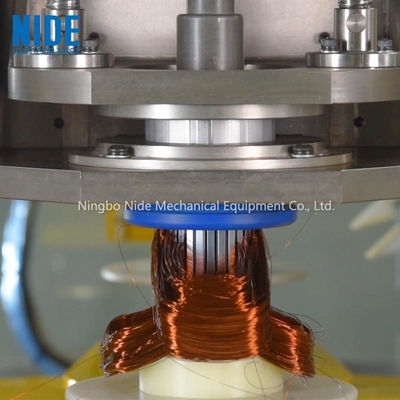

stator winding machine.jpg

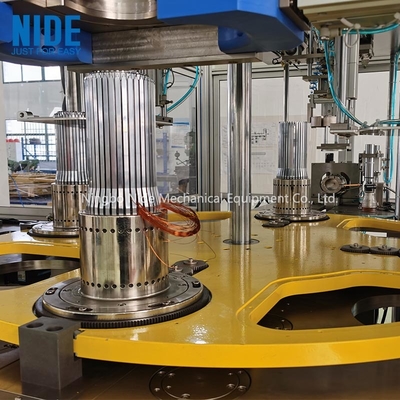

stator coil winding machine.jpg

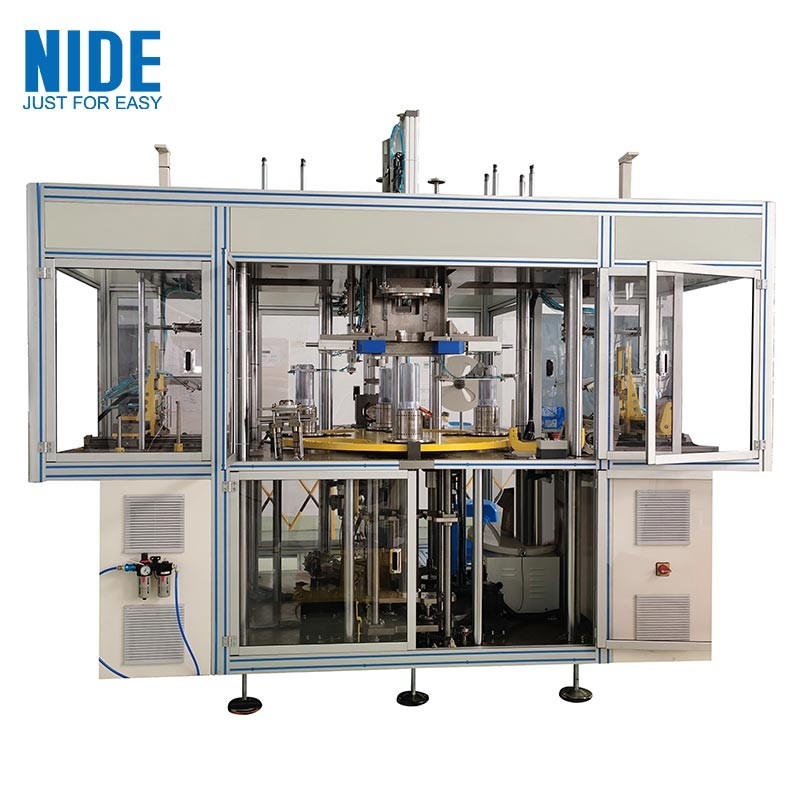

motor winding machine.jpg

4. New Energy Motor Stator Coil Winder And Insertion video:
