| Place of Origin: | China |
| Brand Name: | Nide |
| Certification: | None |
| Model Number: | ND-S2W01H |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case suitable for sea transportation |
| Delivery Time: | 55 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 600 sets per year |
| Control: | PLC Control | Color: | Customized |
|---|---|---|---|
| Working Station: | 2 | Condition: | New |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Warranty: | 1 Year |
| Voltage: | 380v 50hz Three Phase | Name: | Fan Motor Automatic Needle Winding Machine |
| High Light: | transformer winding machine,motor winding machine |
||
Customized Fan motor Automatic Needle Coil Winding Machine
This automatic motor needle winding machine is specially designed for fan motor stator coil winding.
The number of slots and cycles can be set by man-machine interface;
Electric by PLC, display, servo motor control, set, display safe and reliable.
All aluminum alloy (anodizing treatment) plus imported acrylic protection；
The fan motor needle winding machine adopts Two-station needle winding technology, easy to operate, reducing labor and training times needed. The production cost will be highly reduced by decreasing the material loss and labor cost.
For multi-pole stator winding, manual loading and unloading, automatic clamping, winding and shearing；
Tooling and fixture parts adopt downward positioning mode, stable positioning and reliable tightening.
Wire clamping and wire cutting, line part structure compact, wire clamping and wire cutting is completed at one time；
Different stator and winding parameters can be quickly switched through the HMI to adapt to different stator requirements.
Quick change-over of tooling；(20 minutes with proficiency)
PLC control, fault display
| Product name: | Fan motor Automatic Needle Coil Winding Machine |
| Wire diameter: | φ0.13—φ1.2mm(Other specifications can be specially designed) |
| Stator ID: | φ25—φ60mm (Other specifications can be specially designed) |
| Stator OD: | φ60—φ200 mm (Other specifications can be specially designed) |
| Stack length: | 10-80mm(Standard stroke) |
| Servo mechanism: | One Indexing Motor , One Winding Motor with Brake, two wiring motor |
| Spindle speeds: | 0-260 RPM adjustable |
| Air pressure: | 0.5-1MPa |
| Power: | 10KW |
| Voltage: | 380V/50HZ Three phase four wires |
| Dimension: | 1100*1300*1700mm |
| Weight: | 500KG |

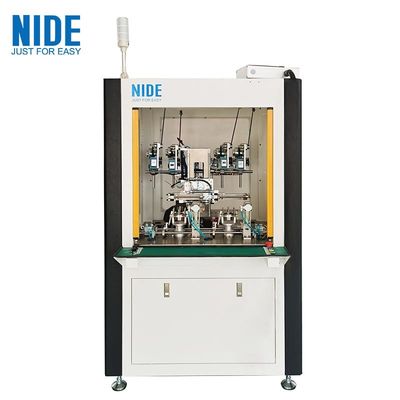

Fan Motor Needle Winding Machine Picture
