Automatic BLDC double working stations Burshless motor stator needle winding machine / Stator ID 10-100mm

Automatic BLDC double working stations Burshless motor stator needle winding machine / Stator ID 10-100mm

  • Automatic BLDC double working stations Burshless motor stator needle winding machine / Stator ID 10-100mm
  • Automatic BLDC double working stations Burshless motor stator needle winding machine / Stator ID 10-100mm
  • Automatic BLDC double working stations Burshless motor stator needle winding machine / Stator ID 10-100mm
  • Automatic BLDC double working stations Burshless motor stator needle winding machine / Stator ID 10-100mm
Automatic BLDC double working stations Burshless motor stator needle winding machine / Stator ID 10-100mm
Product Details:
Place of Origin: China
Brand Name: Nide
Certification: None
Model Number: ND-DDR-IV-B
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 35 working days
Payment Terms: T/T, L/C
Supply Ability: 800 sets per year
Contact Now
Detailed Product Description
Suitable OD: ≤135mm Suitable Thichness: Max 100mm
Working Station: Two Customized Service: Available
Condition: New Stator ID: 10-100mm
Name: Stator Needle Winding Machine
High Light:

fan winding machine

,

electric motor winding machine

Automatic BLDC double working stations Burshless motor stator needle winding machine





(1) stator needle winding machine application:

Nide manufacturing automatic double working stations needle motor winding machine is used for brushless motor stator coil winding.





(2) stator needle winding machine Description:

The bldc motor winding machine has Double working station, auto winding, auto tapping, auto wire clamping, auto wire cutting, auto wire arraying and auto wire acrossing.

one winding nozzle at each winding station, wind the stator one slot by one slot, the stator is requested to have plastic bobbin
Manual stator loading/unloading, stator clamping is finished by pneumatic chuck.
Main controller adopts Schneider PLC, AC servo system and robot motion control system, to complete winding, arraying, auto indexing and wire cutting. Adopt  switch power source and touch screen to display and set winding parameter. Adopt cylinder andmagnetic valve to complete to assist winding action.
Winding motor A and B axis is 4.5kw AC servo motor left-right rotation indexing, winding motor at Z axis up-down movement is 3.0kw AC servo motor, left-right horizontal movement at X axis is 750w AC servo motor, front-back horizontal movement and wire arraying Y axis motor is 750W AC servo motor.




(3) stator needle winding machine Main technical parameter:

Production name: ND-DDR-IV-B Automatic double working stations BLDC motor stator needle coil winding machine
Stator O.D: Φ30-Φ150mm
Stack length: 5-125mm
Stator ID: Φ10-100mm
Wire diameter: Φ0.2-Φ1.50mm,select suitable tensioner as per actual wire diameter.
Pole number: mult and could be customized
Winding speed: 400-800rpm (adjustable)
Tensioner: magnetic tensioner
wokrking station: two

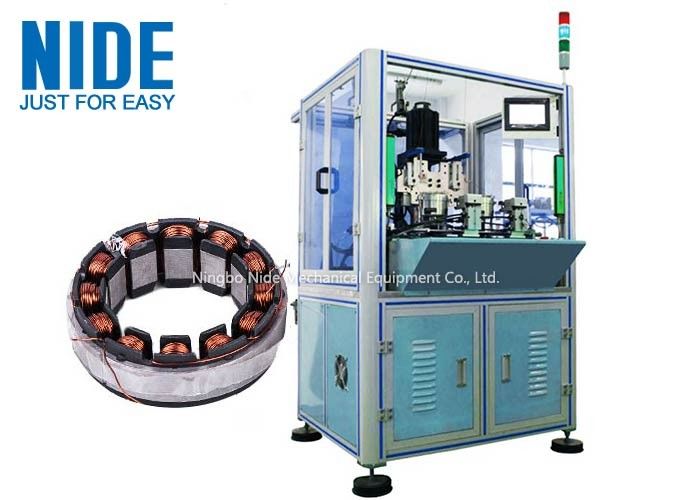

The bldc motor stator winding machine picture

Automatic BLDC double working stations Burshless motor stator needle winding machine / Stator ID 10-100mm 0

The bldc motor stator winding machine with two coil winding stations pictureAutomatic BLDC double working stations Burshless motor stator needle winding machine / Stator ID 10-100mm 1







With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries .

Customerized service 1. Customized product design and manufacturing
2. Customized tranning
3.Technical suggestions
After-sales service 1. Warranty Period: 12 month usually
2. Overseas service center available

3. Engineers available to service overseas



Automatic BLDC double working stations Burshless motor stator needle winding machine / Stator ID 10-100mm 2

NIDE is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.

NIDE has three main business divisions.

The first division is to provide different kinds of motor manufacturing machines, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.

The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover, etc.

The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
