Prouduction Name: | Stator Coil Winding Machine | Application: | BLDC/ Brushless Motor Stator Coil Winding |
---|---|---|---|
Winding Method: | Needle Winding | Color: | Customized |
Type: | Full Automatic | Winding Station: | 2 |
Voltage: | 380V | Weight: | About 500kg |
High Light: | Motor Winding Machine Two Station,Automatic BLDC Winding Machine,Needle Coil Winding Machine |

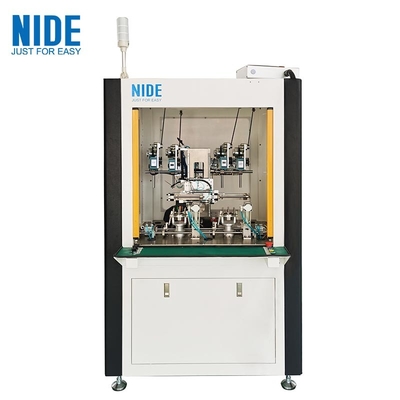

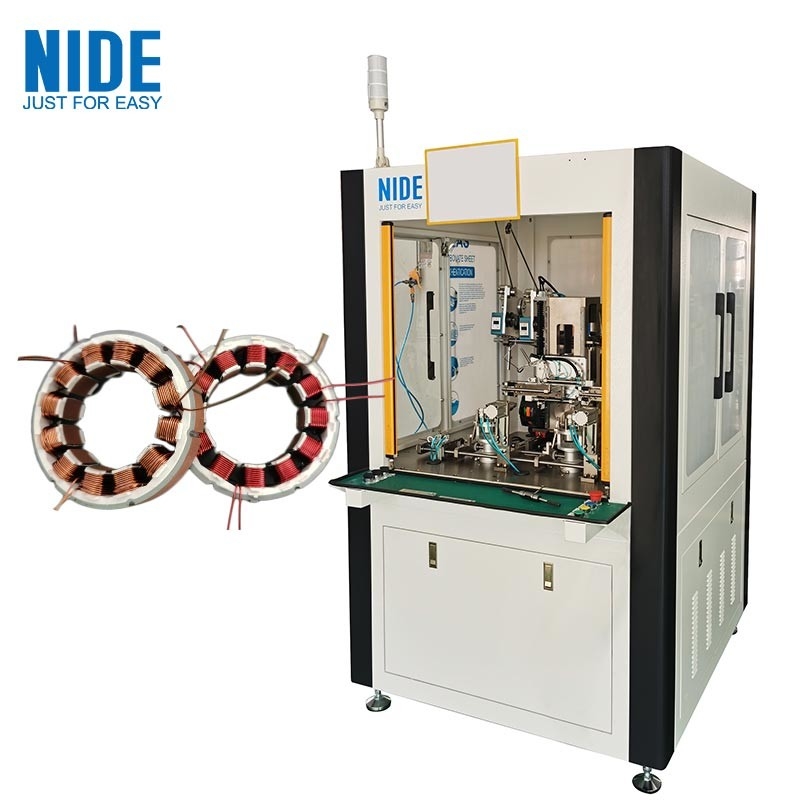

Automatic BLDC Motor Needle Winding Machine With Two-Station
This automatic motor winding machine is specially designed for BLDC motor stator coil winding. The brushless motor winding machine adopts Two-station needle winding technology, easy to operate, reducing labor and training times needed. The production cost will be highly reduced by decreasing the material loss and labor cost.
The number of slots and cycles can be set by man-machine interface;
All aluminum alloy (anodizing treatment) plus imported acrylic protection;
Electric by PLC, display, servo motor control, set, display safe and reliable.
For multi-pole stator winding, manual loading and unloading, automatic clamping, winding and shearing;

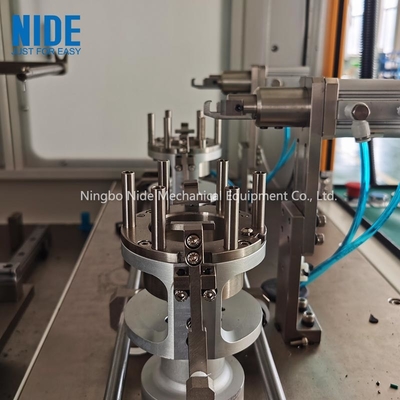

Tooling and fixture parts adopt downward positioning mode, stable positioning and reliable tightening.
Wire clamping and wire cutting, line part structure compact, wire clamping and wire cutting is completed at one time;
Different stator and winding parameters can be quickly switched through the HMI to adapt to different stator requirements.
Quick change-over of tooling;(20 minutes with proficiency)
PLC control, fault display
Product name: | Automatic BLDC Motor Needle Winding Machine |
Wire diameter: | φ0.13—φ1.2mm(Other specifications can be specially designed) |
Stator ID: | φ25—φ60mm (Other specifications can be specially designed) |
Stator OD: | φ60—φ200 mm (Other specifications can be specially designed) |
Stack length: | 10-80mm(Standard stroke) |
Servo mechanism: | One Indexing Motor , One Winding Motor with Brake, two wiring motor |
Spindle speeds: | 0-260 RPM adjustable |
Air pressure: | 0.5-1MPa |
Power: | 10KW |
Voltage: | 380V/50HZ Three phase four wires |
Dimension: | 1100*1300*1700mm |
Weight: | 500KG |
BLDC Motor Needle Winding Machine Picture
FAQ
1. How to confirm which motor needle winding machine model?
Please kindly email us your electric motor stator lamination drawing, stator drawing, winding diagram, winding data or other related information, So that we could recommend suitable stator winding machine model for you accordingly.
If you don't know the specific, leave message or send inquiry for us, and then we will guide you immediately.
2. How to transport the stator winding machine?
By air or sea
3. How to operate the motor needle winding machine?If there is related training about operating the motor manufacturing machines?
Yes, we can supply machine operation video, our engineers also available to service overseas and go to your factory for operations.
4. What field is your machine suitable for?
Our fully automatic motor assemble line is suitable for varies type induction motor assembly, BLDC motor assembly, universal electric motor and DC motor assembly, It could automatically assemble the rotor, armature, stator and motor components together . It is used for washing machine motor, fan motor, BLDC motor, DD motor, electric bicycles motor , electric vehicle motor , hub motor, DD BLDC washing machine motor , compressor motor, vacuum cleaner motor, power tool motor, wiper motor, mixer motor, RO pump motor, NEMA motor, DC motor, etc. It features fast, efficient, accurate, easy set-up, user-friendly programming and tooling flexibility.
