Muti Pole Stator Needle Winding Machine Double Stations 500kg Weight

Muti Pole Stator Needle Winding Machine Double Stations 500kg Weight

    • Muti Pole Stator Needle Winding Machine Double Stations 500kg Weight
    • Muti Pole Stator Needle Winding Machine Double Stations 500kg Weight
  • Muti Pole Stator Needle Winding Machine Double Stations 500kg Weight

    Product Details:

    Place of Origin: China
    Brand Name: NIDE
    Certification: none
    Model Number: ND-S2W01B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: Wooden case which is suitable for sea transportation
    Delivery Time: 60 working days
    Payment Terms: L/C, T/T
    Supply Ability: 200 sets per year
    Contact Now
    Detailed Product Description
    Condition: New Power: 10KW
    Air Pressure: 0.5---1MPa Weight: 500KG
    Color: Customized Machine Certificate: CCC

    Double Stations Muti –pole stator Needle Winding Machine

    Product Induction:

    1.The needle winding machine is Mainly used for multi-pole BLDC stator winding.

    2.Each action cycle can wrap 2 stators, greatly improving the production efficiency.

    3.During the stator winding process, manually feeding, automatic clamping mold, than reduce the labor intensity.

    4.The stator coil winding process can realize Multiple taps (screen setting), wire clamping and wire cutting.

    5.All aluminum alloy (anodizing treatment) plus imported acrylic protection.

    6.The number of slots and cycles can be set through man-machine interface.

    7. Electrical control, setting and display by PLC, display and servo motor are safe and reliable.





    Functions and Characteristics:

    1.For multi-pole stator winding, manual loading and unloading, automatic clamping, winding and shearing.

    2.Tooling and fixture parts adopt downward positioning mode, stable positioning and reliable tightening.

    3.Wire clamping and wire cutting, line part structure compact, wire clamping and wire cutting is completed at one time.

    4.Can quickly replace different types of molds; (experienced in 20 minutes to complete)

    5.Different stator and winding parameters can be quickly switched through the HMI to adapt to the requirements of different stators.

    6.The machine fame adopts National Standard 4040 aluminum profile, the table board adopts Q235.

    7.Full aluminum alloy protection

    8.PLC control.

    9.Fault display function.


    Technical Parameters:

    Air pressure 0.5---1MPa
    Power 10KW
    Weight 500KG
    Dimension 1100*1300*1700mm(length * width * height)
    Voltage 380V/50HZ Three phase four wires
    Spindle speeds 0---260 RPM adjustable
    Stack length 10-80mm(Standard stroke)
    Applicable pole number multi-pole
    Stator ID φ25-φ60mm (Other specifications can be specially designed)
    Stator OD φ60-φ200 mm (Other specifications can be specially designed)
    Wire diameter φ0.13-φ1.2mm(Other specifications can be specially designed)
    Servo mechanism One 3KW Indexing Motor

    One 3KW Winding Motor with Brake

    750W and 2 wiring motor





    Technical requirements to be achieved by products:

    Winding method:It is based on the pattern of winding and the object.

    The line is loose and tight, no injury, no breakage, ect.

    The product is tested in brine within 10 Ma per minute.

    Equipment safety index: accord with CE standard.

    Cycle time:Depending on the winding parameter

    Noise:Below 60-70 decibels

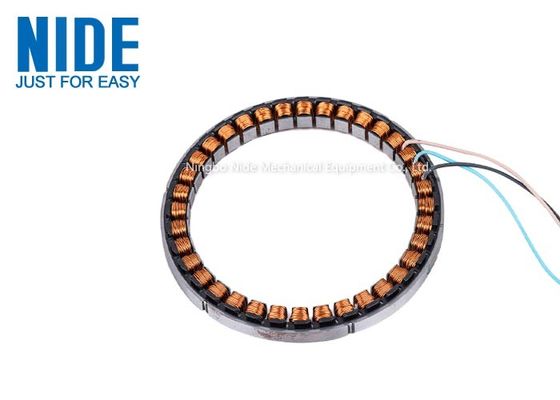

    The Mutipole stator after winding picture show:Muti Pole Stator Needle Winding Machine Double Stations 500kg Weight
