    Machine: Stator Winding Machine Function: Winding Stator Coils
    Application: 2 Poles Stator Working Station: Two
    Customized Service: Available Color: Customized

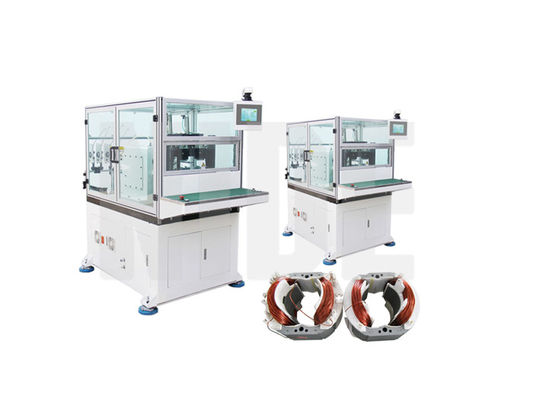

    2 Pole 3 Phase Stator Winding Machines With Double Working Stations / Flyers





    Quick Detail:

    1. Winding automatically done by machine
    2. 2 working stations, 2 flyers.
    3. PLC and touch screen control.
    4. Manually fitting mould, and straining and releasing the mould with hand control lever.
    5. Quickly replace the tooling gripper;
    6. Travel, tilt angle can be adjusted;
    7. The stator coil winding machine is easy to set parameters, alarm available.

    Description:

    Automatic Stator Winding Machine Double Working Stations Double Flyers

    ND-TS-1A stator winding machine is suitable for two-poles stator winding, such as mixer motor, grinder motor, vacuum cleaner motor etc. It can wind two stators at same time. It's self-locked, quick and convenient. Winding parameter can be set and saved through the touch screen.



    Applications:

    This type of stator winding machine is suitable for two-poles stator winding, such as mixer motor, grinder motor, vacuum cleaner motor etc.



    Specifications :

    Item

    Specification

    Wire diameter

    0.15-1.3mm

    Stator O.D range

    50-150mm

    Stack length

    20-60mm

    Pole no.

    2 poles

    Turn number

    0-9999

    Spindle speed

    0-450 rpm

    Motor power

    4.5KW

    Air supply pressure

    5-7 Kg/cm2

    Voltage

    Three phase AC380V50/60Hz

    Weight

    1200Kg

    Dimension

    1050(length)X2300(width)X1750(height)mm



    Operation procedure of this machine

    Fix the winding tools on stator core, then put stator core on the loading base, press START button, safety door will close, loading base will move inside to the winding position, machine will automatic winding and cut wire, at this time, operator could fix the winding tools on another two stator cores; after finishing winding, loading base will move outside, safety door opened, then take out the completed stator, and put another two stator cores on the loading base, one cycle is completed.



    Competitive advantages:

    Easy operation, high automation. PLC and touch screen control, double working stations.
