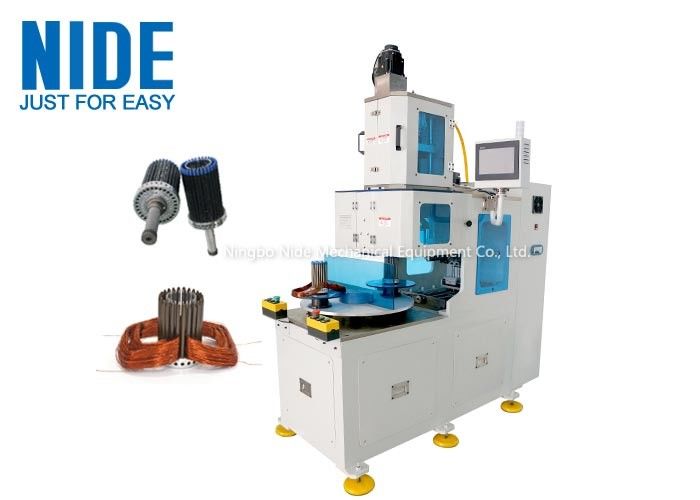

Name: Automatic Stator Vertical Coil Winding Machine With Single-head and Double Station
Brand: Nide
SKU: RXL1-160
Rating: 4.7 (174 reviews)

Home Products Automatic Coil Winding Machine

Automatic Stator Vertical Coil Winding Machine With Single-head and Double Station

Product Details:

Place of Origin:	China
Brand Name:	Nide
Certification:	None
Model Number:	RXL1-160

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wooden case suitable for sea transportation
Delivery Time:	35 working days
Payment Terms:	T/T, L/C
Supply Ability:	800 sets per month

Contact Now

Detailed Product Description

Name:	Stator Vertical Coil Winding Machine	Color:	Customize
Condition:	New	Working Stations:	Two
Application:	Electric Motor Stator
High Light:	air coil winding machine , coil winding machinery

Automatic Stator Vertical Coil Winding Machine With Single-head and Double Station

Description:

This Vertical Type Stator Coil Winding Machine is a kind of single-head and double-station automatic winding machine; automatic put the coil into tradsfer former orderly;

especially suitable for high slot filling rate, small notch stator; winding mode such as automatic skip, automatic cutting and automatic indexing can be finished at a time successively;

parameter could be set in human-machine interface,

winding tension is adjustable;

obtain continuous/discontinuous winding way and meets the 2 poles, 4 poles and 6 poles coils winding,

Quick Detail:

1. This Automatic Stator Vertical Coil Winding machine is suitable for winding stator coil.

2. The coil Winding tension is adjustable.

3. This stator coil winding machine can meet continuous/discontinuous winding way and 2 poles, 4 poles and 6 poles coils winding,

4. It is high automation and easy for operating,so that save cost.

Technical data:

Wire diameter range	0.2-1.2mm
Fly fork diameter	300mm
Winding head	1
Max stack height	100mm
Max stator OD	160mm
Jump file number	1-5
Max RPM	2000RPM
Air pressure	0.4mpa
Power supply	380V- 50/60HZ 7KW
Weight	1000kg
Dimension	1500 X600 X2200mm

Competitive advantages:

Variety of application, easy operation.

stator winding machine

Click the below picture to view the video.

With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries .

Customerized service	1. Customized product design and manufacturing
	2. Customized tranning
	3.Technical suggestions
After-sales service	1. Warranty Period: 12 month usually
	2. Overseas service center available
	3. Engineers available to service overseas

Automatic Stator Vertical Coil Winding Machine With Single-head and Double Station 2

NIDE is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.

NIDE has three main business divisions.

The first division is to provide different kinds of motor manufacturing machines, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.

The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover, etc.

The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
