| Place of Origin: | China |
| Brand Name: | Nide |
| Certification: | None |
| Model Number: | RXL1-220C |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case suitable for sea transportation |
| Delivery Time: | 50 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 120 sets per year |
| Machine Size: | Smal Size | Automation Type: | Automatic |
|---|---|---|---|
| Certificate: | CCC | Condition: | New |
| Customized Service: | Available | Name: | Automatic Stator Winding Machine |
| Application: | AC Electric Motor | Working Stations: | 2 |
| High Light: | ac motor automatic stator winding machine,ccc automatic stator winding machine,traction motor stator winding machine |
||

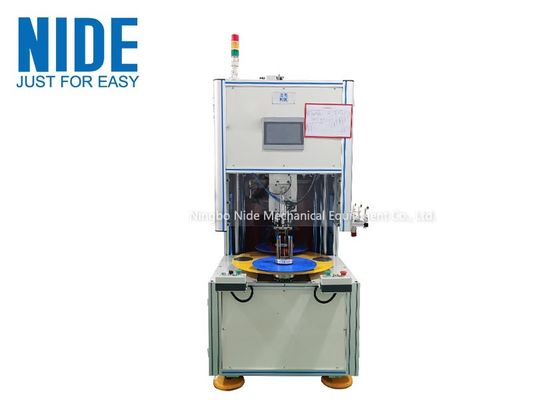

The motor stator winding machine is suitable for EV traction motor, AC and DC motor, BLDC motor and induction motor, etc. Especially for the small to medium size stator coil.We can provide professional stator winding machine equipment and winding solutions.
| Product name: | Automatic stator coil winding machine |
| Max stack OD: | 160mm |
| Max stack height: | 100mm |
| Winding station: | 2 |
| Wire diameter: | 0.17~1.2mm |
| Winding speed: | ≤2000RPM |
| Flier track: | ￠200mm |
| Transfer number: | 2~6 section |
| Power supply: | 380V/50/60HZ 7KW |
| Weight: | about 1100kg |
| Dimension: | L1800*W1100*2200mm |
The above stator winding machine data can be adjusted according to customer needs, if you need it, please feel free to contact us.
FAQ
1. How to confirm which motor stator winding machine model?
Please kindly email us your electric motor stator lamination drawing, stator drawing, winding diagram, winding data or other related information, So that we could recommend suitable stator winding machine model for you accordingly.
If you don't know the specific, leave message or send inquiry for us, and then we will guide you immediately.
2. How to transport the stator winding machine?
By air or sea
3. How to operate the motor stator winding machines?If there is related training about operating the motor manufacturing machines?
Yes, we can supply machine operation video, our engineers also available to service overseas and go to your factory for operations.
4. What field is your machine suitable for?
Our fully automatic motor assemble line is suitable for varies type induction motor assembly, BLDC motor assembly, universal electric motor and DC motor assembly, It could automatically assemble the rotor, armature, stator and motor components together . It is used for washing machine motor, fan motor, BLDC motor, DD motor, electric bicycles motor , electric vehicle motor , hub motor, DD BLDC washing machine motor , compressor motor, vacuum cleaner motor, power tool motor, wiper motor, mixer motor, RO pump motor, NEMA motor, DC motor, etc. It features fast, efficient, accurate, easy set-up, user-friendly programming and tooling flexibility.
