Fully Automatic Vertical Motor Stator Bldc Winding Machine

Fully Automatic Vertical Motor Stator Bldc Winding Machine

  • Fully Automatic Vertical Motor Stator Bldc Winding Machine
  • Fully Automatic Vertical Motor Stator Bldc Winding Machine
  • Fully Automatic Vertical Motor Stator Bldc Winding Machine
  • Fully Automatic Vertical Motor Stator Bldc Winding Machine
  • Fully Automatic Vertical Motor Stator Bldc Winding Machine
Fully Automatic Vertical Motor Stator Bldc Winding Machine
Product Details:
Place of Origin: China
Brand Name: Nide
Certification: None
Model Number: RXL2-160B
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 50 working days
Payment Terms: T/T, L/C
Supply Ability: 120 sets per year
Contact Now
Detailed Product Description
Machine Size: Middle Size Automation Type: Automatic
Certificate: CCC Condition: New
Customized Service: Available Name: Fully Automatic Motor Stator Winding Machine
Application: Induction Motor Stator Coil Winding Working Stations: 4
High Light:

vertical bldc winding machine

,

fully automatic bldc winding machine

,

vertical automatic stator winding machine

Fully automatic vertical motor stator winding machine with 4 station



1.Stator Winding Machine Introduction

The stator winding machine is used for induction motor stator coil winding.It adopts vertical coil winding structure design, will be tailor made to suit your own production needs and will incorporate multiple coil winding stations to meet the outputs levels required.

Each system is PLC servo motor controlled for high accuracy and repeatibility for all machine and tooling movments including automatic slot wedge making.

2.Stator Winding Machine Application

The stator winding machine is mainly used in three-phase motors, single-phase motors, washing machine motors, vacuum cleaner motors, fan motors, air conditioner motors, pump motors, refrigerator motors, etc.

Induction motor refers to a motor that uses electromagnetic induction between the stator and the rotor to induce current in the rotor to achieve electromechanical energy conversion. The stator of an induction motor consists of three parts: a stator core, a stator winding and a frame.This stator winding machine is a good help for the motor stator to complete the coil winding.

3.Stator Winding Machine Parameter

Product name: Fully automatic stator winding machine for induction motor
Wire diameter: 0.19~1.2mm
Flyer diameter: 220mm
Max stack height: 65mm
Max stator OD: 130mm
Max RPM: 2000RPM
Air source: ≥0.5MPa
Operation station: 4
Winding head: 4
Power supply: 380V 50/60HZ 15KW
Weight: about 4550KG
Dimension: (L)2500*(W)1900*(H)2200mm

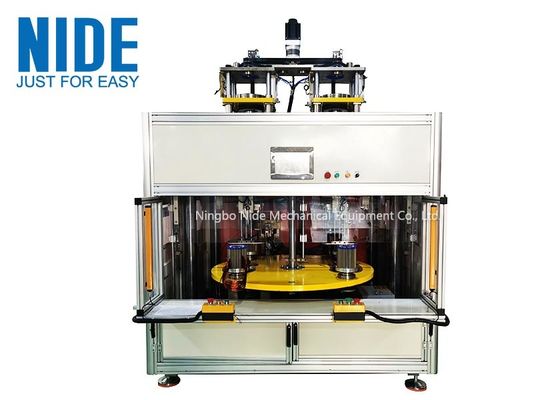

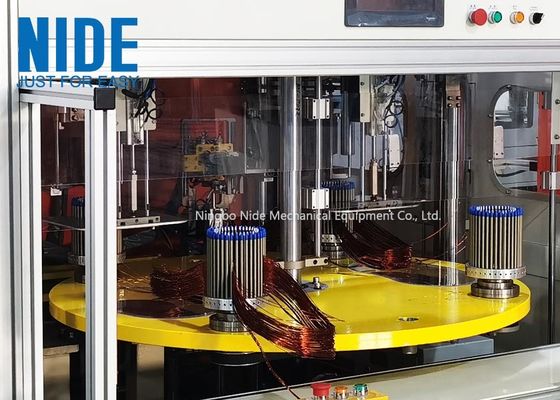

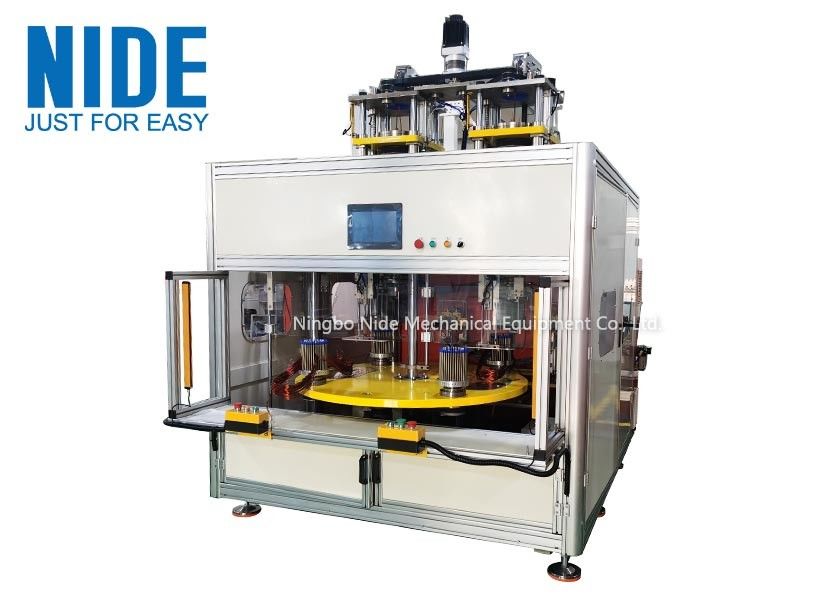

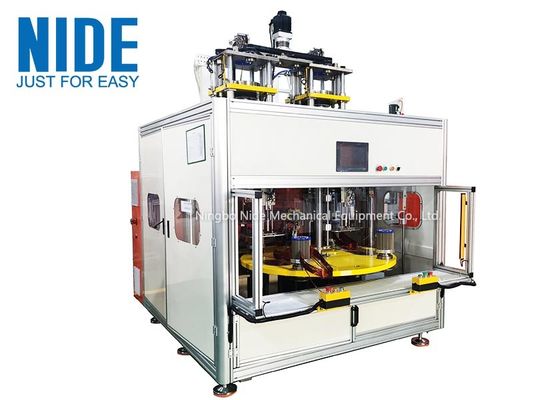

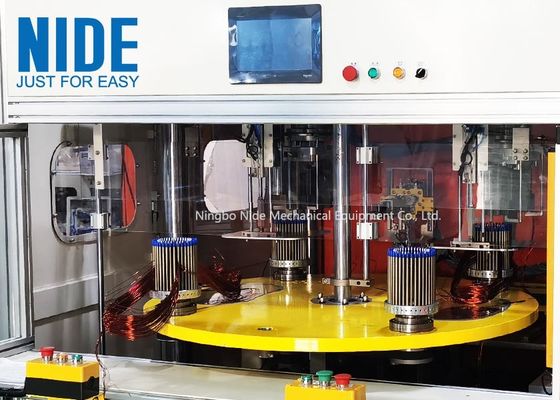

4.Stator Winding Machine Picture

stator winding machine.jpg

stator coil winding machine.jpg

automatic stator winding machine.jpg

5.Stator Winding Machine Video







Fully Automatic Vertical Motor Stator Bldc Winding Machine 3





FAQ

1. How to confirm which motor stator winding machine model?

Please kindly email us your electric motor stator lamination drawing, stator drawing, winding diagram, winding data or other related information, So that we could recommend suitable stator winding machine model for you accordingly.

If you don't know the specific, leave message or send inquiry for us, and then we will guide you immediately.



2. How to transport the stator winding machine?

By air or sea



3. How to operate the motor stator winding machines?If there is related training about operating the motor manufacturing machines?

Yes, we can supply machine operation video, our engineers also available to service overseas and go to your factory for operations.



4. How long has your company been in the field of motor manufacturing?

Established in 2007, NIDE is a company devoted in electric motors manufacturing solutions, providing one-stop service for our customers.



5. What field is your machine suitable for?

Our fully automatic motor assemble line is suitable for varies type induction motor assembly, BLDC motor assembly, universal electric motor and DC motor assembly, It could automatically assemble the rotor, armature, stator and motor components together . It is used for washing machine motor, fan motor, BLDC motor, DD motor, electric bicycles motor , electric vehicle motor , hub motor, DD BLDC washing machine motor , compressor motor, vacuum cleaner motor, power tool motor, wiper motor, mixer motor, RO pump motor, NEMA motor, DC motor, etc. It features fast, efficient, accurate, easy set-up, user-friendly programming and tooling flexibility.
