| Place of Origin: | China |
| Brand Name: | Nide |
| Certification: | None |
| Model Number: | RX6-900 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case suitable for sea transportation |
| Delivery Time: | 35 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 200 sets per year |
| Condition: | New | After-Sales Service: | Overseas Service Center Available |
|---|---|---|---|
| Working Station: | Single Working Station | Customized Service: | Available |
| High Light: | 1.6mm stator coil winding machine,60RPM stator coil winding machine,motor stator coil winding machine |
||
Automatic Horizontal Big Wire Electric Motor Stator Coil Winding Machine

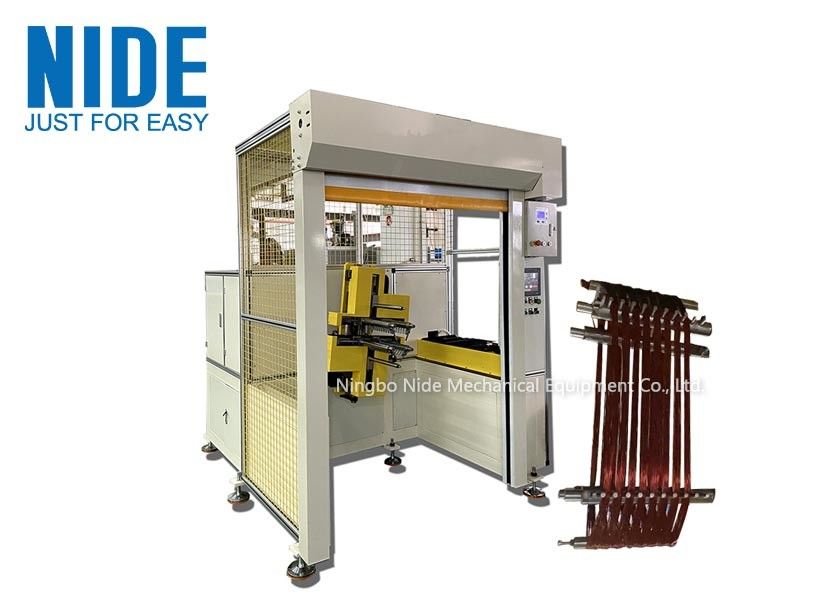

This high-power coil winding machine is equipped with a lifting door, which improves the safety of the operator.This product has automatic adjustment function, improved offline device, easier to offline, and will not affect the coil.
Big stator coil winding machine function and characteristic:
The automatic Big power motor Stator Coil Winding Machine adopts special purpose controller to achieve the function of auto winding, auto arraying, slot acrossing, auto getting through wax tube and output setting, etc.
The Big Stator Coil Winding Machine could produce different dimension coils which are for same series size stator by adjusting the tooling, and tension is adjustable.
Main Technical data:
| Product name: | Big Electric Motor Stator Coil Winding Machine |
| Wire diameter: | 0.3~1.6mm |
| Winding head: | 1 |
| Swing stroke: | 450mm |
| Applicative frame size: | 280, 315, 355, 400, 455 |
| Max RPM: | 60RPM |
| Max wire number: | 45 wires |
| Power: | 38V- 50/60HZ, 5.5Kw |
| Air pressure: | 0.4mpa |
| Dimension: | 2300mm X2200mm X2000mm |
| Weight: | 1000kg |
Big stator coil winding machine Application
This automatic stator coil winding machine is suitable for winding the coil for big power motor.

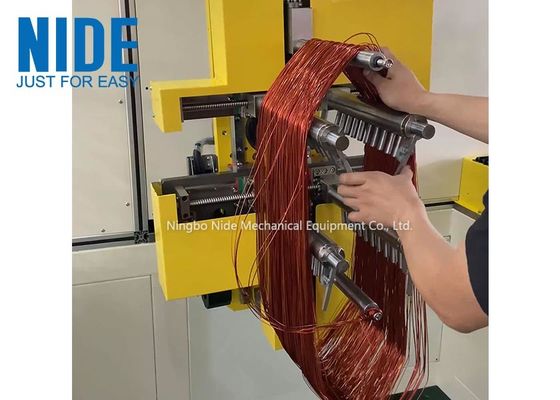

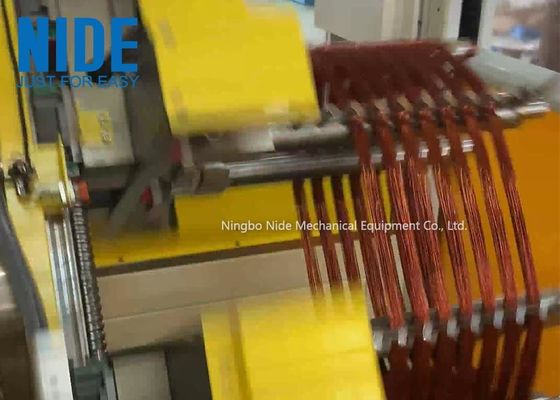

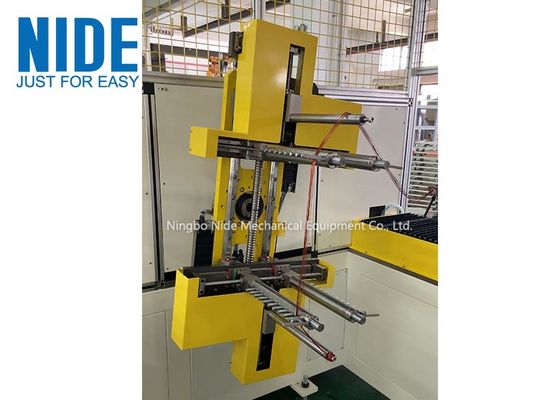

Big stator coil winding machine picture show
