Place of Origin: | China |
Brand Name: | Nide |
Certification: | CE |
Model Number: | ND |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Wooden case suitable for sea transportation |
Delivery Time: | 35 working days |
Payment Terms: | T/T, L/C |
Supply Ability: | 100set |
Name: | Automatic BLDC Motor Segmented Stator Core Heat-melt Into The Shell Machine | Machine Size: | Middle Size |
---|---|---|---|
Automation Type: | Fully Automatic | Working Station: | 1 Working Station |
Customized Service: | Available | Condition: | New |
Application: | Brushless Motor, Servo Motor, Stepper Motor | ||
High Light: | Automatic stator shell machine,Segmented stator shell machine,Motor stator shell machine |

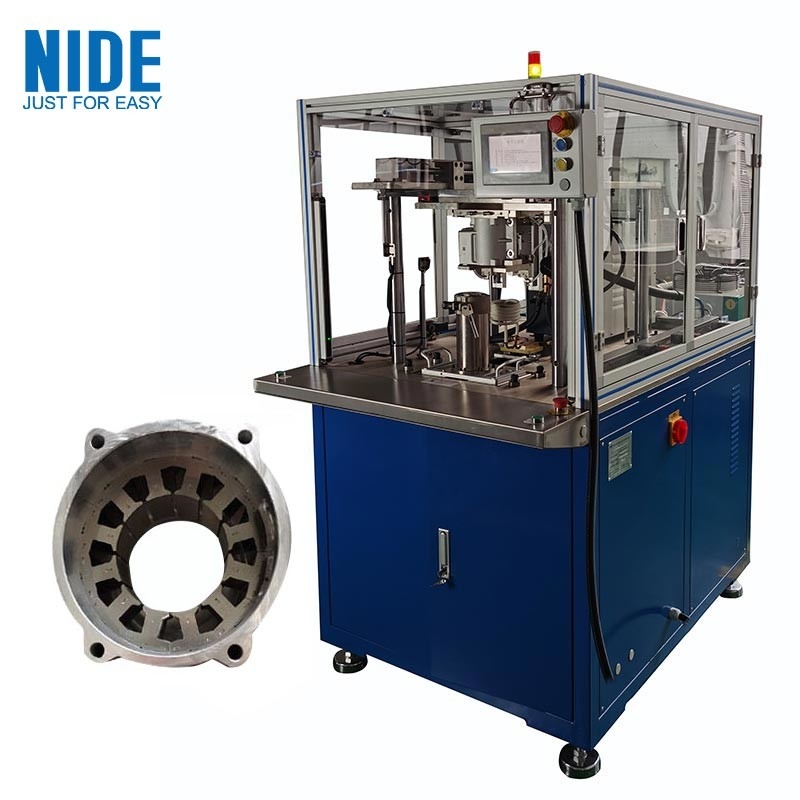

Automatic BLDC Motor segmented stator core heat-melt into the shell machine

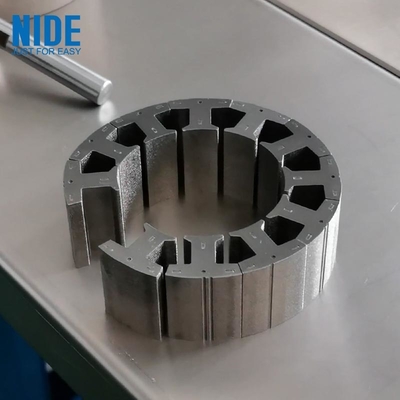

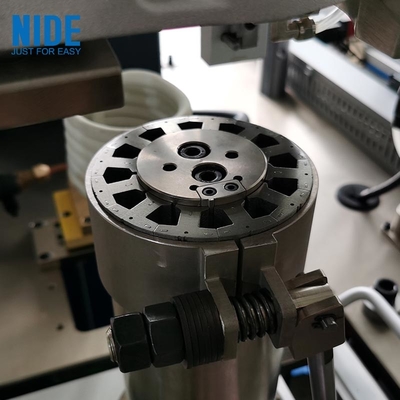

This stator heat-melt machine is suitable for circular heat-melt welding into the motor shell of segmented stator cores. It is a key equipment for stator production such as brushless motors, automobile motors, air-conditioning motors, and washing machine motors. The equipment is divided into circular part, servo positioning part and hot melt part and other actuators. It adopts PLC control and is equipped with color touch screen operation, and the product specification conversion is simple. The stator melting machine is an instrument that transfers the heat of the heating ring to the welding surface of the segmented stator core heating element by the electric heating method, so that the melting surface of the stator core and the motor frame are fused, solidified, and integrated.
Heat-melt into motor shell machine Features:
1. Constant temperature heating, temperature can be set by yourself.
2.The level of the indenter structure is adjustable, and the debugging is convenient.
3. Low power consumption, heating and heating, precise digital display thermostat to control the temperature.
4.The precise digital display time controller controls the crimping time, and the ultra-wide time is adjustable.
5. The whole machine has the characteristics of compact and reasonable design, beautiful appearance, small floor space and high production efficiency.
6. Used for thermal welding of various types of brushless motor segment stator cores.
NIDE is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.
NIDE has three main business divisions.
The first division is to provide different kinds of motor manufacturing machines, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover, etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries .
Customerized service | 1. Customized product design and manufacturing |
2. Customized tranning | |
3.Technical suggestions | |
After-sales service | 1. Warranty Period: 12 month usually |
2. Overseas service center available | |
3. Engineers available to service overseas |
