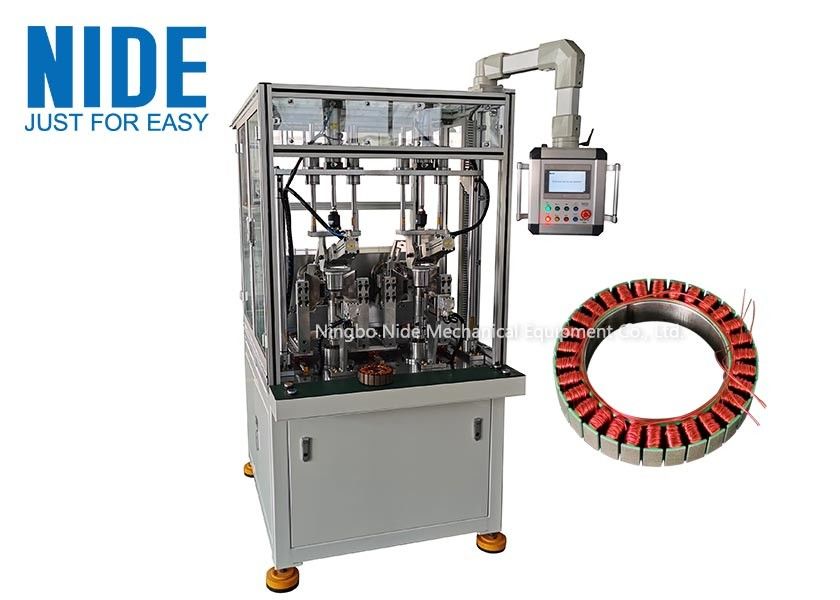

1.0mm 2 Wheel Motor Automatic Stator Winding Machine

1.0mm 2 Wheel Motor Automatic Stator Winding Machine

  • 1.0mm 2 Wheel Motor Automatic Stator Winding Machine
  • 1.0mm 2 Wheel Motor Automatic Stator Winding Machine
  • 1.0mm 2 Wheel Motor Automatic Stator Winding Machine
  • 1.0mm 2 Wheel Motor Automatic Stator Winding Machine
  • 1.0mm 2 Wheel Motor Automatic Stator Winding Machine
1.0mm 2 Wheel Motor Automatic Stator Winding Machine
Product Details:
Place of Origin: CHINA
Brand Name: NIDE
Certification: CE
Model Number: ND-NL-RT02B
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: negotiable
Packaging Details: The motor stator needle winding machine is suitable for sea transportation
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 180 sets per year
Contact Now
Detailed Product Description
Product Name: Automatic Electric Car Wheel Motor Winding Machine Color: Customized
Type: Fully Automatic Winding Method: Flyer Coil Winding
Application: Electric Car Motor ,electric Scooter Motor,new Energy Vehicles Motor Warranty: 1 YEAR
Applicable: Manufacturing Plant After-sales: Field Installation, Commissioning And Training, Field Maintenance
WorKing Statons: 1
High Light:

Motor Automatic Stator Winding Machine

,

1.0mm automatic stator winding machine

Automatic 2 Wheel Electric Balance Car motor stator winding machine with double winding stations



About 2 Wheel Self Balancing Electric Scooter motor stator winding machine , Our company absorbs new ideas, strict quality control, a full range of service tracking, and adhere to make high-quality products. With our rich experience and considerate services, we have cooperated with many well-known international wheel motor manufacturers to provide them with various motor manufacturing solutions, which are mainly used in new energy electric vehicles, electric vehicles, electric balance vehicles, electric scooters, etc. Our profession and service have won the trust of our customers! If you are interested in our products and services, please feel free to contact us!

Electric Balance Car motor stator winding machine.jpg

(1). Main function:

The wheel motor stator winding machine adopts air cylinder, PLC and touch screen control to realize the main functions of positioning, indexing, flying fork winding, motor cable winding, automatic front thread trimming and other functions. It can store hundreds of parameters and switch arbitrarily.



(2). Technical Parameters

Product name: Automatic 2 Wheel Electric Balance Car motor stator winding machine
Wire dia: 0.5-1.0mm
Stator stack: 30-85mm (The tooling can be used for stacked stators within 5mm. If the random mold is designed for 30mm, it can be used to 35mm stators, If you make a stator of more than 35mm, you need to redo 2 pieces of guard plates, 2 sets of I-shaped blocks, spare parts)
Processing range: Stator OD D200-D300mm(different OD needs to change different tooling)
Color: customized
Winding station: 2 working stations
Winding method: flyer coil winding
Air pressure: 0.4-07Mpa
Input voltage: 220V
Input power: 5KW
Cycle time: winding 0.9X40 turns 54 slots 15 mins.
Primary qualification rate ≥98%(Stator stack thickness error is less than 0.2mm)
Dimension 900X2100X1700 mm
Weight: 500Kg



(3). Application

This wheel motor winding machine is suitable for electric vehicles, electric bicycles, electric motorcycles, electric balance vehicles, electric scooter, new energy vehicles, etc.

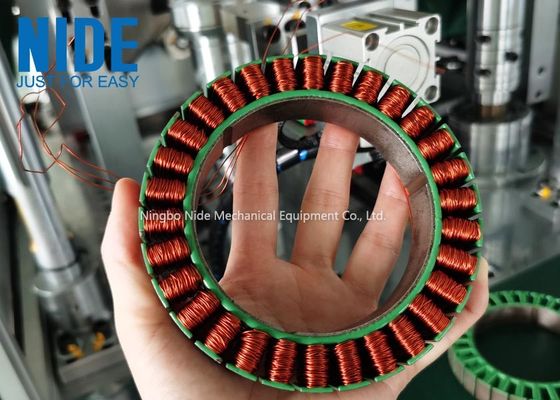

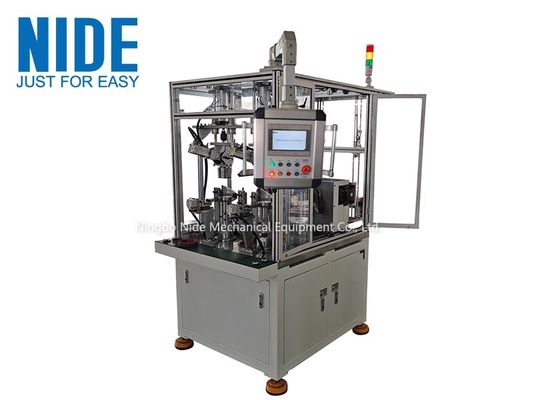

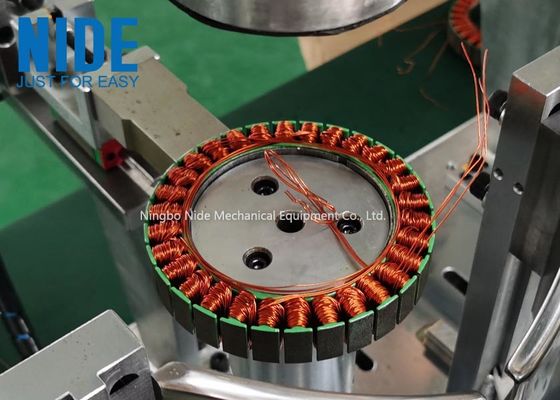

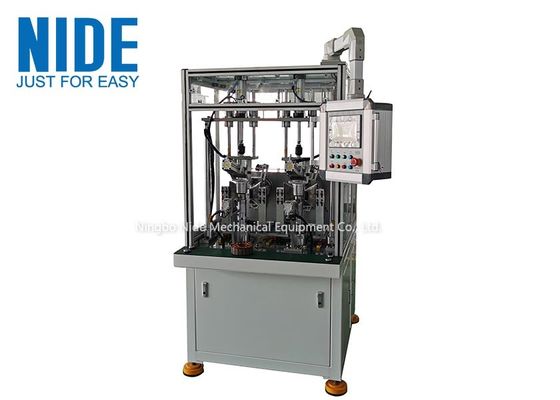

(4). Picture show

Electric Balance Car wheel motor stator winding machine.jpg

Electric Car motor automatic stator winding machine.jpg

new energy electric vehicle motor stator winding machine.jpg

(5). The new energy electric vehicle wheel motor stator winding machine video

FAQ

1. How to confirm which wheel hub motor stator winding machine model?

Please kindly email us your electric motor stator lamination drawing, stator drawing, winding diagram, winding data or other related information, So that we could recommend suitable machine model for you accordingly.

If you don't know the specific, leave message or send inquiry for us, and then we will guide you immediately.



2. How to transport the wheel hub motor stator winding machine?

By air or sea



3. How to operate the wheel hub motor stator winding machines?If there is related training about operating the motor manufacturing machines?

Yes, we can supply machine operation video, our engineers also available to service overseas and go to your factory for operations.



4. How long has your company been in the field of motor manufacturing?

NIDE is a company devoted in electric motors manufacturing solutions, providing one-stop service for our customers.



5. What field is your machine suitable for?

Our fully automatic motor assemble line is suitable for varies type induction motor assembly, BLDC motor assembly, universal electric motor and DC motor assembly, It could automatically assemble the rotor, armature, stator and motor components together . It is used for washing machine motor, fan motor, BLDC motor, DD motor, electric bicycles motor , electric vehicle motor , hub motor, DD BLDC washing machine motor , compressor motor, vacuum cleaner motor, power tool motor, wiper motor, mixer motor, RO pump motor, NEMA motor, DC motor, etc. It features fast, efficient, accurate, easy set-up, user-friendly programming and tooling flexibility.



With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries .

Customerized service 1. Customized product design and manufacturing
2. Customized tranning
3.Technical suggestions
After-sales service 1. Warranty Period: 12 month usually
2. Overseas service center available

3. Engineers available to service overseas



1.0mm 2 Wheel Motor Automatic Stator Winding Machine 4

NIDE is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.

NIDE has three main business divisions.

The first division is to provide different kinds of motor manufacturing machines, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.

The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover, etc.

The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
