| Machine Size: | Middle Size | Automation Type: | Fully Automatic |
|---|---|---|---|
| Certificate: | CCC | Condition: | New |
| Customized Service: | Available | HS: | 8479811000 |
| Name: | Segmented Stator Winding Machine | Application: | BLDC Motor Stator |
| Winding Method: | Needle Coil Winding Techbology | Stator Type: | Open Linear Segmented Stator |
| Highlight: | Segmented Stator Coil Winding Machine,HMI Stator Coil Winding Machine,800RPM Stator Coil Winding Machine |
||
Automatic segmented stator winding machine for BLDC motor open linear stator
1. Description:
The automatic segmented stator winding machine adopts needle winding technology with 3 needles, is used for open linear segmented stator coil winder, It is an improved coil winding making manufacturing technique, increase the performance of permanent magnet electrical machines and reduce cost, Segmenting the stator core offers the possibility to simplify the winding process, to increase slot fill factor or to minimize wastage of electrical steel. During winding, it can achieve multi-tapping (set on the HMI), wire damping, wire cutting.
The slot No. and turn No. can be set on HMI.
2. Application:
The stator winding machine suitable for BLDC motor stator manufacturing, a stator composed of similar stator segments and to a method for producing a stator from stator segments, wherein the stator segment comprises a laminated core that has a plastic layer which is arranged between the winding region of the stator winding and the laminated core for electrically insulating the winding region from the laminated core.
3. Specification:
| Product name: | Automatic segmented stator coil winding machine |
| Wіrе dіа.: | ф0.2-Ф1 .5mm(can be customized if special) |
| Stator stackheight: | 10-80mm |
| Stator length: | 60-300mm |
| Speed range: | 0-800RPM adjustable |
| Servo mechanism: | 1pc 3KW winding motor with brake, 2pcs 750W lef-right and wire arraying motor |
| Pole No.: | multi poles |
| Power: | 20KW |
| Air pressure: | 0.5-1MPa |
| Voltage: | 380V/50Hz three phase four wires |
| Dimension: | 1300 mm X 1200 mm X 1600mm |
| Weight: | 800KG |

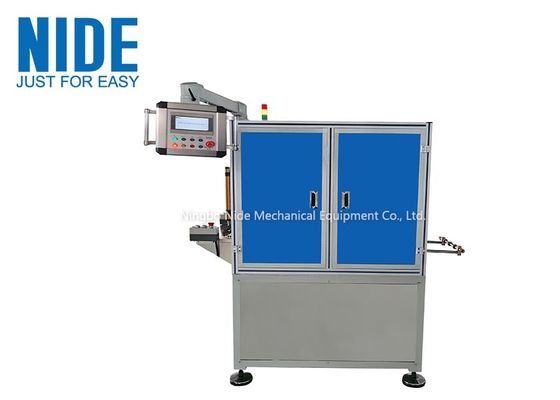

4. Segmented stator winding machine Picture show
The automatic segmented stator winding machine adopt needle coil winding technology
The automatic segmented stator winding machine has 3 coil winding needles
The motor segmented stator after coil winding
5. Automatic BLDC motor segmented stator needle coil winding machine video
With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries .
| Customerized service | 1. Customized product design and manufacturing |
| 2. Customized tranning | |
| 3.Technical suggestions | |
| After-sales service | 1. Warranty Period: 12 month usually |
| 2. Overseas service center available | |
|
3. Engineers available to service overseas |
NIDE is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.
NIDE has three main business divisions.
The first division is to provide different kinds of motor manufacturing machines, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover, etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
