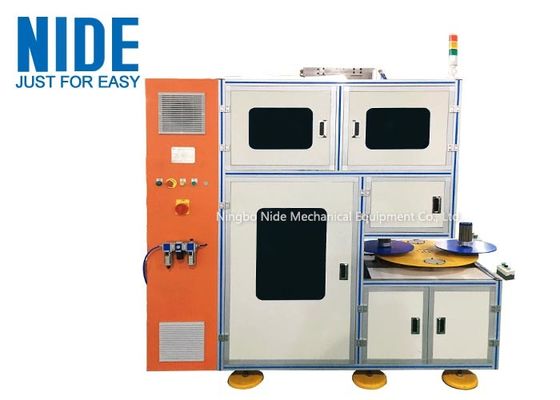

Stator Coil Winding Machine Middle Size Automatic Type Two Stations Structure

Stator Coil Winding Machine Middle Size Automatic Type Two Stations Structure

Stator Coil Winding Machine Middle Size Automatic Type Two Stations Structure

Product Details:

Place of Origin: China
Brand Name: Nide
Certification: None
Model Number: RXL1-160A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: The stator winding machine is suitable for sea transportation
Delivery Time: 40 working days
Payment Terms: T/T, L/C
Supply Ability: 800 sets per year
Contact Now
Detailed Product Description
Product Name: Electric Motor Stator Coil Winding Machine Certification: Main Electric Components Are CE Certificated.
Condition: New Working Stations: Two
Application: Electric Motor Stator After-sales Service Provided: Engineers Available To Service Machinery Overseas
Type: Automatic Color: Cusotmized
Voltage: 380V Size: Middle

Custmoized automatic electric motor stator coil winding Machine,Personlized motor manufacturing machine





The automatic stator winding machine adopt vertical two stations structure,is used for for 2 poles, 4 poles and 6poles electric motor stator coils making.



(1) Machine main function and characteristic

The electric motor stator coil winding machine is a double-station automatic vertical winding machine, The turntable is two stations structure. It adopts servo system to rotate and index transfer form.

X and Y spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.

Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.

Each stator winding machine has one set winding tooling and three vertical winding forms.

Able to exactly wind coils onto the forklike flywheel and easily transfer the coil to coil inserter, with high efficiency and great inserting winding effect.

The whole set of tooling can be changed, and it takes about 15min.

Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.

PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.

And it is endowed with the display function of dynamic turns, actual turns, set turns, failure causes and position self-check.

Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.

Allow two wires winding simultaneously.

The automatic stator winding Machine has no distinct vibration and noise.





(2) Main technical data

Product name: Automatic stator coil winding machine for electric motor
Winding head: 1pc
Wire diameter: 0.17~1.2mm
Max stack OD: 160mm
Max stack height: 100mm
Winding speed: ≤2000RPM
Flier track: ¢200mm
Transfer number: 2~6section
Power supply: 380V/50/60HZ 7KW
Weight: about 1100kg
Dimension: L1800*W1100*2200mm

automatic coil winding machine


(3) Picture show

The automatic coil winding machine

automatic stator winding machineautomatic electric motor winding machine

automatic motor coil winding machine
