Linear Segment Stator Winding Machine Open Pole Stator Needle Coil Winding Equipment

Linear Segment Stator Winding Machine Open Pole Stator Needle Coil Winding Equipment

    • Linear Segment Stator Winding Machine Open Pole Stator Needle Coil Winding Equipment
    • Linear Segment Stator Winding Machine Open Pole Stator Needle Coil Winding Equipment
  • Linear Segment Stator Winding Machine Open Pole Stator Needle Coil Winding Equipment

    Product Details:

    Place of Origin: China
    Brand Name: nide
    Certification: CE
    Model Number: ND-SLR01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiable
    Packaging Details: Wooden case which is suitable for sea transportation
    Delivery Time: 40 working days
    Payment Terms: L/C, T/T
    Supply Ability: 800 sets per year
    Contact Now
    Detailed Product Description
    Name: Segment Staotr Coil Winding Machine Used For: Open Linear Segment Stator Coil Winding
    Color: Customized After-sales Service: Engineers Available To Service Machinery Overseas
    Condition: New Stator Stackheight: MAX 80MM
    Stator Winding Speed: Max 500rpm Type: Automatic
    Size: Middle Winding Method: Needle Winding

    Automatic linear segment stator winding machine open pole stator needle coil winding equipment









    (1). Introduction and features

    The machine is suitable for open linear/segment stator winding, adopts needle winding with three needles.

    It winds 1pc stator one time, manually loading/unloading, automatic clamping fixture.

    During winding, it can achieve multitapping(set on the HMI), wire damping, wire cutting.

    The slot No. and turn No. can be set on HMI.





    (2).Specification:



    Dimension: 1100X 850X 1600(L xWx H) (exclude the wire tensioner dimension)
    Weight: 500KG
    Servo mechanism: 1pc 3KW winding motor with brake, 2pcs 750W lef-right and wire arraying motor
    Voltage: 380V/50Hz three phase four wires
    Stator stackheight: 10-80mm
    Stator length : 60-300mm
    Speed range: 0-500RPM adjustable
    Air pressure: 0.5-1MPa
    Wіrе dіа.: ф0.2-Ф1 .5mm(can be customized if special)
    Pole No.: multi poles
    Power: 20KW





    (3).Picture show

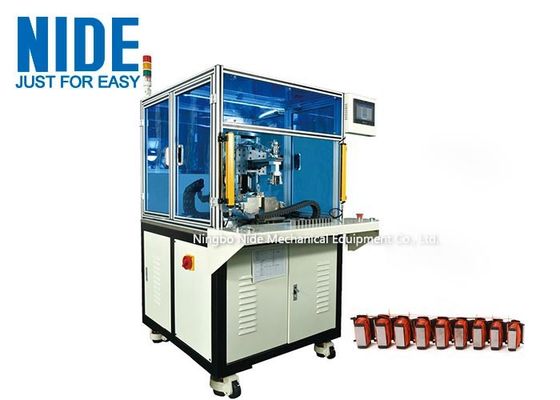

    automatic linear segment stator winding machine

    open stator winding machine segment stator needle winding machine

    Linear Segment Stator Winding Machine Open Pole Stator Needle Coil Winding Equipment
