Customized Automatic Coil Winding Machine For Miniature Induction Motors

Customized Automatic Coil Winding Machine For Miniature Induction Motors

    • Customized Automatic Coil Winding Machine For Miniature Induction Motors
    • Customized Automatic Coil Winding Machine For Miniature Induction Motors
    • Customized Automatic Coil Winding Machine For Miniature Induction Motors
    • Customized Automatic Coil Winding Machine For Miniature Induction Motors
  • Customized Automatic Coil Winding Machine For Miniature Induction Motors

    Product Details:

    Place of Origin: China
    Brand Name: Nide
    Certification: None
    Model Number: RXL1-160D

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: The stator winding machine is suitable for sea transportation
    Delivery Time: 35 working days
    Payment Terms: T/T, L/C
    Supply Ability: 800 sets per year
    Contact Now
    Detailed Product Description
    Product Name: Compressor Stator Coil Winding Machine Certification: Main Electric Components Are CE Certificated.
    Condition: New Working Stations: Two
    Application: Air Conditioner Motors, Washing Motors, Compressor Motors, Fan Motors, Generator Motors, And Pump Motors After-sales Service Provided: Engineers Available To Service Machinery Overseas
    Type: Automatic Color: Cusotmized
    Voltage: 380V Size: Middle
    High Light:

    air coil winding machine

    ,

    coil winding machinery

    Automatic compressor motors stator coil winding machine for miniature induction motors





    I. Application

    This automatic stator coil winding machine is suitable for miniature induction motors such as air conditioner motors, washing motors, compressor motors, fan motors, generator motors, and pump motors.





    II. Product structure

    This stator winding machine is mainly composed of the frame part, the main shaft part, the indexing part, the manipulator part and the distribution box.





    III. Main technical data

    Product name compressor motors stator coil winding machine
    Winding head: 1pc
    Wire diameter: 0.2~1.2mm
    max stack height : 160mm
    max stator O.D : 210MM
    Winding speed: ≤2200RPM
    Max flier track: ¢400mm
    Transfer number: 1-7section
    Power supply: 380V/50/60HZ 4.5KW
    Air pressure : 0.4Mpa
    Weight: about : 1200kg
    Dimension: L1800*W1100*2200mm





    IV. Product introduction main features

    1.This coil winding machine is a vertical single-head double-station automatic winding machine;

    2.The coil can be arranged neatly in the hanging cup cup tool, especially suitable for the winding of the high slot full rate and small slot stator;

    3.Automatic tripping, automatic trimming, and automatic indexing are completed in sequence.

    4.HMI setting parameters, winding tension can be adjusted, with continuous winding, non-continuous winding and other functions,

    5.PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.

    6.X and Y spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.

    7.It can be used for 2, 4 and 6 pole motor stator coil winding.

    8.This automatic stator winding machine is mature in technology, advanced in technology, reliable in quality, and easy to use and maintain.

    9.Winding tooling: each machine has one set winding tooling and three vertical winding forms.

    10.The whole set of tooling can be changed, and it takes about 15min.

    11.The turntable is two stations structure. It adopts servo system to rotate and index transfer form.

    12.Allow three wires winding simultaneously.

    13.Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.

    14.The working rotation speed can be set .

    15.Machine has no distinct vibration and noise.

    16.Free of enamel damage and wire snap.

    17.Once the copper wire is run out, machine will automatically stop.

    18.Tooling sunk adopts servo system. The max segment number of tooling sunk is 7.





    V. Picture show

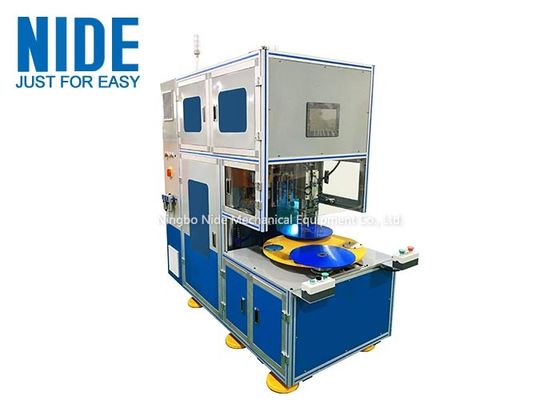

    1.The automatic stator coil winding machine

    automatic stator winding machine

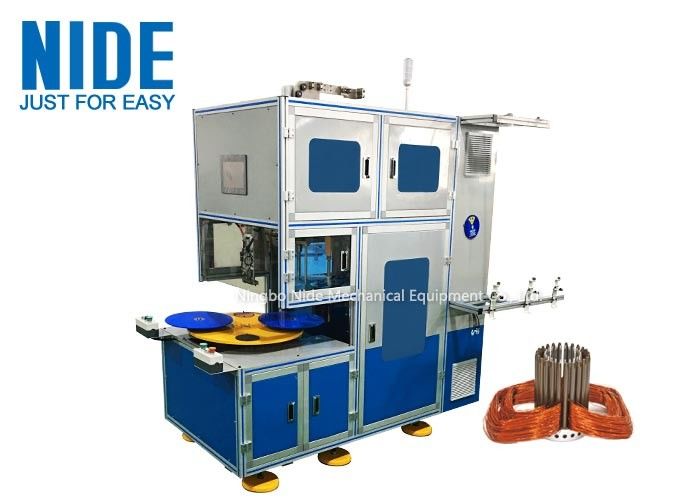

    2.The automatic coil winding machine tooling

    compressor motors winding machine

    3.The stator winding machine is used for compressor motors,

    automatic compressor motors stator winding machine
