Name: BDLC Inner Staotr Coil Winding Machine Used For: Open Type Stator Coil Winding
Color: White Or Customized After-sales Service: Engineers Available To Service Machinery Overseas
Condition: New Stator OD: MAX 260MM
Stator Winding Speed: Max 3000rpm Type: Automatic
High Light:

transformer winding machine

,

motor winding machine

Straight open linear stator winding machine BLDC stator in slot winding machenical





The automatic straight linear open stator winding machine adopts the outer winding method to realize the brushelss motor inner stator winding . The operation is simple and the efficiency is high.

open inner stator winding machine



Straight open stator winding machine Features:

1.The motor open stator winding machine is suitable for the straight-row expansion type stator coil winding, and adopts the outer winding method to wind the brushless inner stator.

2.During the coil winding process,It can achieve auto coil winding, auto wire crossing, auto tapping, auto wire arraying, the winding speed can be set on the HMI.

3.The linear open stator winding machine adopts servo motor to control the winding , ensure the stability and high efficiency of the position of the exit and the groove.

4.Independent shaft cable is used to ensure the flatness of the cable.

5.Changing the fixture is very simple and can be done in a few minutes.

6.With a more user-friendly human-machine interface, parameters can be changed directly on the interface.

7.This open inner stator winding machine has a self-diagnostic function.

8.The open inner stator winding machine is easy to operate and high in efficiency, which greatly improves work efficiency and reduces labor costs.





Straight open stator winding machine Application

This open inner stator winding machine is suitable for coil winding of straight linear open stator of various DC brushless motors , such as servo motor, brushless motor, stepping motor, fan motor, bladeless fan motor and elevator door motor.





Straight open stator winding machine Technical Parameters

Product name : Automatic straight linear open stator winding machine
Wire diameter : 0.5-1.3mm
Stator O.D. : 60-260mm
Stator stack length : 6-50mm
Winding speed : 500-3000 R.P.M
Spindle No. : 4 spindles
Voltage : 380V 50/60Hz
Weight : about 400kg
Dimension : 1000*1300*1500mm





Straight open stator winding machine Picture show

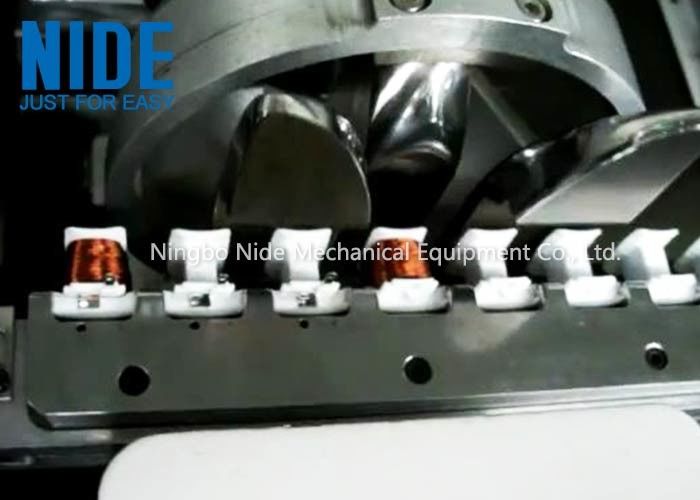

Open stator winding machine display-1

linear winding machine,stator winding machine



Open stator winding machine display-2

bldc inner stator winding machine stator in slot winding machine



Open stator winding machine display-3

straight open stator winding machine open winding machine
