| Place of Origin: | China |
| Brand Name: | NIDE |
| Certification: | CE |
| Model Number: | RX4-650C |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Wooden case which is suitable for sea transportation |
| Delivery Time: | 40 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 120 sets per year |
| Product Name: | Big Power Submersible Pump Motor Coil Winding Machine | Used For: | Medium Motor Stator Coil Winding |
|---|---|---|---|
| Color: | Customized | Winding Station: | 1 |
| Voltage: | 380V | Power: | 2.2KW |
| Type: | Semi Automatic | Size: | Middle |
| High Light: | electric motor coil winding machine,coil winding machinery |
||
Big power Medium submersible motor stator coil winding machine manufactured by Nide
(1) Main technical parameter:
| Product name: | big power medium motor stator coil winding machine |
| Wire diameter: | 0.3~1.5mm |
| Swing diameter: | 350~650mm |
| Winding head: | 1 |
| Applicative frame size: | 200, 225, 250, 280 |
| Screw stroke: | 400mm |
| Max RPM: | 160RPM |
| Max wire number: | ≤20 pcs |
| Power supply: | 380V/50/60Hz 2.2KW |
| Air supply: | 0.4MPa |
| Weight: | 800Kg |
| Dimension: | 1500*1700*1550mm |
(2) Application
This Motor Coil Winding Machine is suitable for winding the coil for Big power medium motor, such as submersible motor, Pump motor
(3) Machine function and characteristic:
The Motor Stator Coil Winding Machine adopts special purpose controller to realize the function of auto winding, auto arraying, slot acrossing, auto getting through wax tube and output setting, etc. Big Stator Coil Winding Machine could produce different dimension coils which are for same series size stator by adjusting the tooling, and tension is adjustable.
(4) Motor coil winding machine picture show:

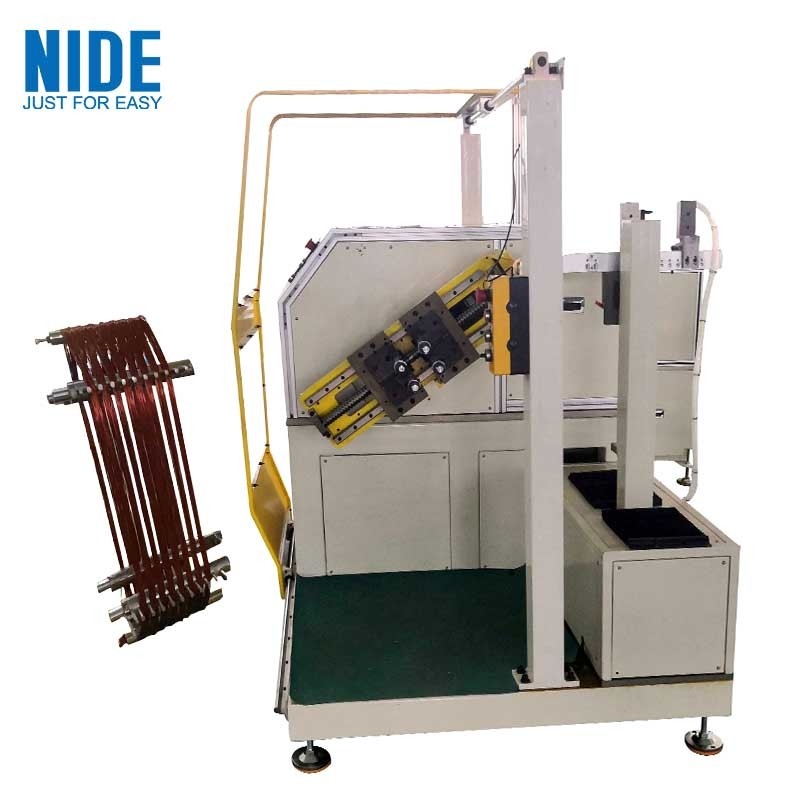

The big power motor stator coil winding machine

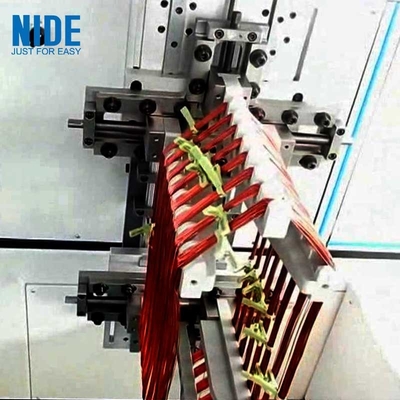

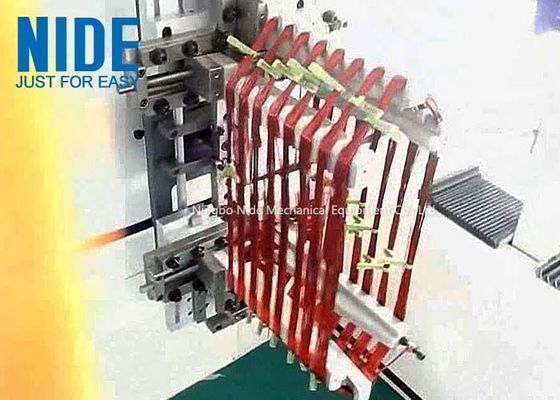

The Winding mold for the big power submersible motor stator coil winding machine
The motor coil winding machine youtube video https://youtu.be/gxElsbbCz2w
