| Place of Origin: | china |
| Brand Name: | nide |
| Certification: | none |
| Model Number: | RX2-250A |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Wooden case which is suitable for sea transportation |
| Delivery Time: | 60 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 sets / year |
| Name: | Stator Coil Winding Machine | Condition: | New |
|---|---|---|---|
| Power Supply: | 220V/50/60Hz 1.5kw | Air Pressure: | 0.4~0.6MPa |
| Machine Weight: | 900Kg | Machine Dimension: | 1550mm*1250mm*1550mm |
| High Light: | motor winding machine,stator coil winding machine |
||

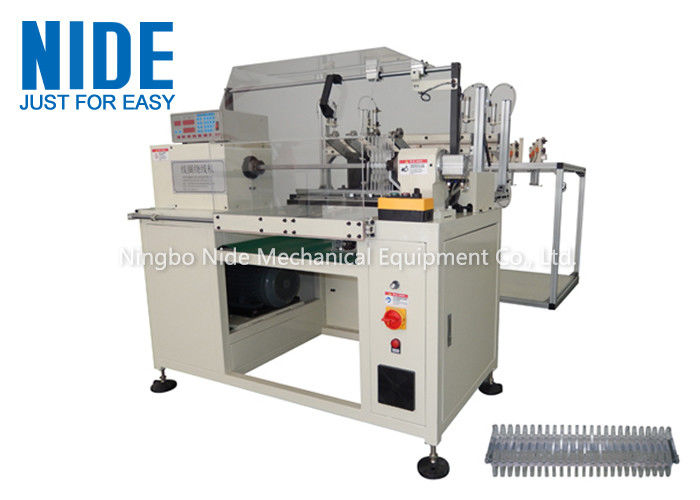

Fully Automatic Servo Motor Stator Coil Winding Machine, Multi-wire Parallel Winding
Quick Detail:
1. Model No.: RX2-250
2. It is specially designed for multiple wire parallel coil winding.
3. This machine could set the function of arraying direction, winding start point, slow starting, slow ending, sides stop, auto width, auto reset, ect..
4. It is easy to operate.
(1)Description:
Multistrand Type Coil Winding Machine is specially designed for multiple wire parallel coil winding such as alternator, servo motor and three phase motor. Multistrand Type Coil Winding Machine adopts special purpose controller which could set the function of arraying direction, winding start point, slow starting,slow ending, sides stop, auto width, auto reset, ect.
(2)Technical parameter of stator coil winding machine
| Product name | RX2-250stator coil winding machine |
| Swing diameter | ≤350mm |
| Effective length of tooling | ≤400mm |
| Parallel wire number | ≤16 pcs |
| Wire diameter | 0.2~1.5mm |
| Max RPM | 1600RPM |
| Power supply | 220V/50/60Hz 1.5Kw |
| Air pressure | 0.4~0.6MPa |
| Machine Weight | 900Kg |
| Machine Dimension | 1550mm*1250mm*1550mm |
(3) Machine function and characteristic of stator coil winding machine
This Stator Coil Winding Machine is specially designed for multiple wire parallel coil winding such as alternator, servo motor and three phase motor.
This stator coil winding machine adopts special purpose controller which could set the function of arraying direction, winding start point, slow starting, slow ending, sides stop, auto width, auto reset, ect.
It saves labor and cost.
(4)Competitive advantages:
This machine could set the function of arraying direction, winding start point, slow starting, slow ending, sides stop, auto width, auto reset, ect..
Variety of application, easy operation.
We have Overseas Service Center.
It is suitable for rotor or stator with different model number and dimension.
The operation and tooling change process is easy.
We could customize machine for our customer as per their requirement.
We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.
With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries .
| Customerized service | 1. Customized product design and manufacturing |
| 2. Customized tranning | |
| 3.Technical suggestions | |
| After-sales service | 1. Warranty Period: 12 month usually |
| 2. Overseas service center available | |
|
3. Engineers available to service overseas |
NIDE is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.
NIDE has three main business divisions.
The first division is to provide different kinds of motor manufacturing machines, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover, etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
