    Product Details:

    Place of Origin: China
    Brand Name: Nide
    Certification: NONE
    Model Number: ND-SW03-B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiable
    Packaging Details: Wooden case which is suitable for sea transport
    Delivery Time: 45 working days
    Payment Terms: T/T, L/C
    Supply Ability: 160 sets per year
    Contact Now
    Detailed Product Description
    Stator ID: 10-50mm Stator OD: 30-80mm
    Total Power: 8.5 KW Winding Station: One
    Weight: About 350 Kg Dimension: 700*900*1650mm

    Three Needle Induction Motor Winding Machine Servo Motor Bldc Stator Coil Winding




    BLDC stator winding machine Introduction:
    The brushless motor stator coil winding machine is suitable for the winding of the stator of the servo motor, the BLDC stator winder adopts the needle inner winding design, single-station operation, and can simultaneously wind three slots at the same time in the winding, and the whole coil winding process is automated and efficient. , safe, multi-strand winding at the same time, the coil winding speed can reach up to 800 rpm, and different types of brushless stators can be wound according to customer requirements. This BLDC stator needle winder has self-diagnosis function.


    BLDC stator winding machine Specification:

    Product name : Servo motor BLDC stator coil winding machine
    Wire dia.: 0.15-0.7mm(can be customized)
    BLDC Stator ID: 10-50mm
    BLDC Stator OD: 30-80mm
    BLCD Stator Stack- length: 5-60mm
    Winding speed: 50-800 r/min
    Winding method: three needle winding
    Winding station : one
    Aire pressure: 0.5MPa~0.7 MPa
    Power: 380V/50HZ, three phase four wires
    Total power: 8.5 KW
    Weight: about 350 Kg
    Dimension: 700*900*1650mm

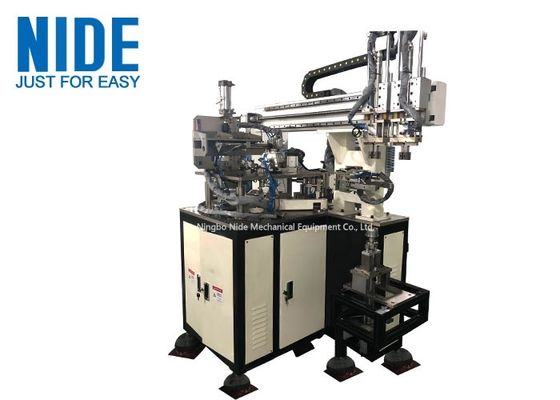

    Servo motor BLDC needle winding machine Picture display

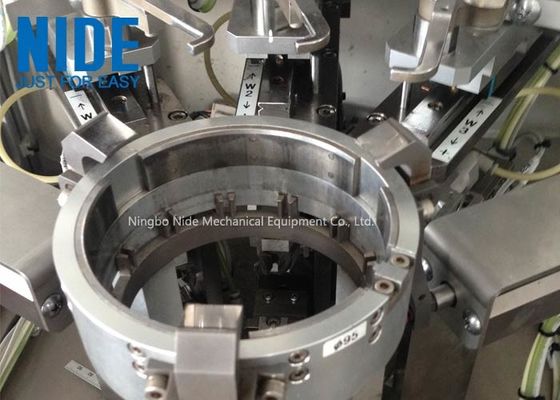

    The BLDC Sstator winding machine winding process 1



    Three Needle Induction Motor Winding Machine Servo Motor Bldc Stator Coil Winding

    The BLDC Sstator winding machine winding process 2

    Three Needle Induction Motor Winding Machine Servo Motor Bldc Stator Coil Winding
