Place of Origin: | China |
Brand Name: | NIDE |
Certification: | NONE |
Model Number: | ND-RX50B |
Minimum Order Quantity: | 1 set |
---|---|
Price: | negotiable |
Packaging Details: | Wooden case which is suitable for sea transport |
Delivery Time: | 45 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 160 sets per year |
Winding Method: | Stator Internal Needle Winding | Stack- Length: | 5-60mm |
---|---|---|---|
Dimension: | 700*900*1650mm | Weight: | 350 Kg |
Highlight: | fan winding machine,electric motor winding machine |
Bladeless Fan Motors Servo Precision Stator Coil Winding Machine
Motor Winding machine application:
The motor inner stator winding machine is suitable for various types of DC brushless motors such as servo motors, electric toothbrush motors , brushless motors, stepping motors, fan motors, and bladeless fan motors.
Motor Winding equipment introduction:
The brushless motor stator winding machine is suitable for the four-slot brushless motor stator coil winding, and adopts the double-station horizontal structure design . The brushless stator can automatically rotate the station after the winding of the two slots , and each stator winding requires only two processes ; the motor stator winding machine can control and process the winding process at the same time of high-speed winding, and can perform two-axis synchronous neatly arranged winding, and can achieve special processes with high winding requirements; the winding machine adopts servo precision. Positioning, automatic winding head, tail, automatic winding, automatic cable, automatic indexing, automatic clipping, to achieve the best cost performance of the equipment.
Specification:
Product name : | Double stations Horizontal BLDC staor needle winding amchine |
Wire dia.: | 0.15-0.7mm(can be customized) |
Winding speed: | 50-800 r/min |
Winding method: | stator internal needle winding |
Stack- length: | 5-60mm |
Stator ID: | 10-50mm |
Stator OD: | 30-80mm |
Aire pressure: | 0.5MPa~0.7 MPa |
Power: | 380V/50HZ, three phase four wires |
Total power: | 8.5 KW |
Dimension: | 700*900*1650mm |
Wegit : | ≈ 350 Kg |
BLDC winding machine Picture display :

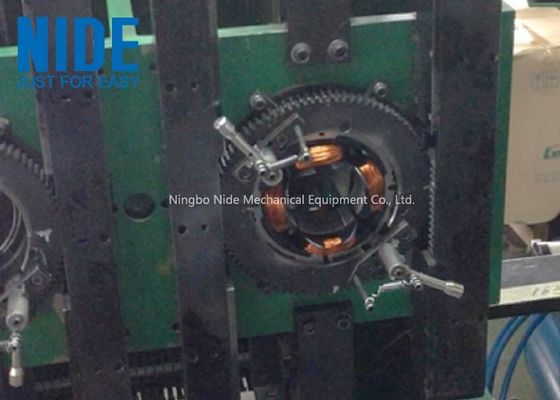

The BLDC motor stator coil winding machine winding process 1
The BLDC motor stator coil winding machine winding process 2
