Name: | Stator Coil Winding Machine | Color: | White Or Customized |
---|---|---|---|
Working Station: | 2 | Conditon: | New |
System: | Servo | Control: | PLC |
Type: | Large | Stator OD: | Max 260mm |
Highlight: | transformer winding machine,motor winding machine |
Automatic table fan motor stator winder transformer coil winding machine
(1) Machine main function and characteristic
This automatic stator coil winding machine has One winding head and two winding stations. It adopts servo system to rotate and index transfer form.
During the stator winding machine running, the coil winding data will be displayed in the touch screen. Meanwhile, the stator coil winding program can also be edited in the touch screen.
Allow two wires winding simultaneously.
Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
The working rotation speed can be set . Machine has no distinct vibration and noise.
Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.
(2)Main technical data
Production name: | stator coil winding machine |
Wire diameter: | 0.2-1.2mm |
Flyer diameter: | 400mm |
Max stator stack height: | 220mm |
Max stator OD.: | 260mm |
Coil winding head: | 1pc |
Coil winding stations: | 2pc |
Transfer section NO.: | 1-6 |
Max winding speed: | 1500r/Min |
Air pressure: | 0.4MPa |
Voltage: | 380V 50/60hz |
Power: | 4.5kw |
Weight: | about 1200kg |
Dimension: | (L)2200*(W)1200*(H)2200mm |
(3) Application:
The automatic motor stator coil inserting machine is suitable for air conditioner motor, washing machine motor, compression motor, table fan motor ,ceiling fan motor,generator motor and pump motor.

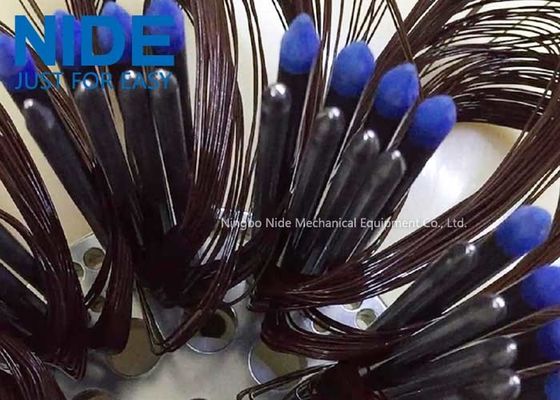

(4)The automatic stator coil winding machine working show
