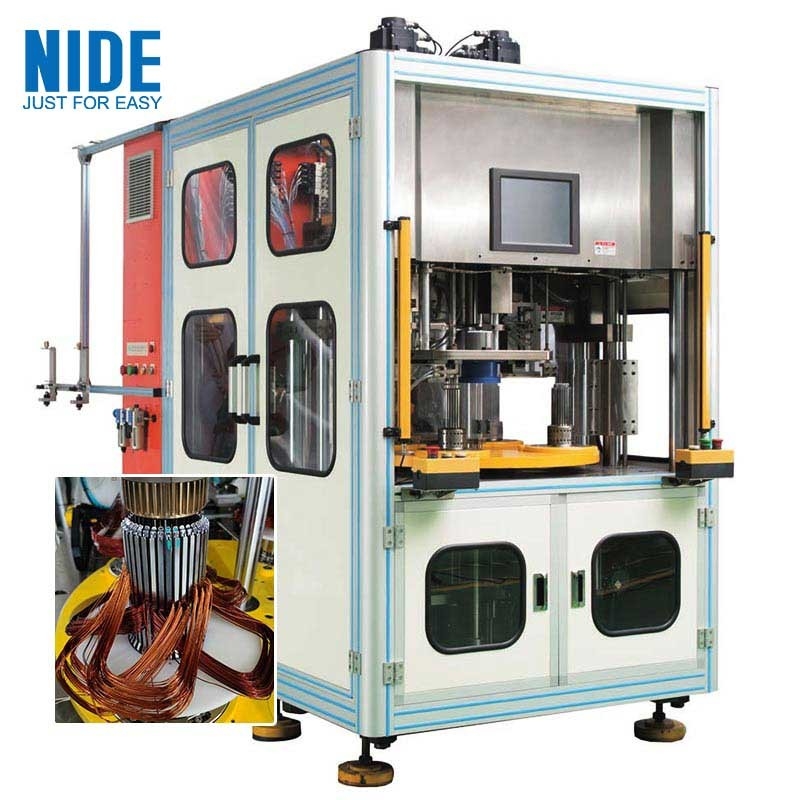

Full Auto Stator Winding Machine / Inserting Machine For Single Phase Fan Motor

Full Auto Stator Winding Machine / Inserting Machine For Single Phase Fan Motor

    • Full Auto Stator Winding Machine / Inserting Machine For Single Phase Fan Motor
    • Full Auto Stator Winding Machine / Inserting Machine For Single Phase Fan Motor
  • Full Auto Stator Winding Machine / Inserting Machine For Single Phase Fan Motor

    Product Details:

    Place of Origin: China
    Brand Name: NIDE
    Certification: CE
    Model Number: R2QL1-110/150N

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiable
    Packaging Details: Wooden case which is suitable for sea transportation
    Delivery Time: 45 working days
    Supply Ability: 150 sets per year
    Contact Now
    Detailed Product Description
    Name: Stator Coil Winding And Inserting Machine Used For: Single Phase Motor
    Condition: New Color: White Or Customized
    Coil Winding Working Station: Double Two Coil Inserting Station: One

    Double station stator coil winder coil winding and inserting machine for fan motor





    (1) Machine Feature
    This stator coil winding machine is suitable for single phase motors. The main and auxiliary winding process can be wound at the same time to improve the production efficiency. The stator winding machine monitors the status of each station's materials in real time to prevent equipment failures caused by repeated materials. One person can operate multiple machines,and Unmanned production with robot.



    (2) Main technical data

    Prouduction name: double stations stator coil winding and inserting machine
    Stator OD: ≤φ150mm
    Stator ID: ≤φ110mm
    Stack Height: 30-120mm
    Height of Coil: 3
    Winding stations: 2
    Coil inserting station: 1
    Appropriate Wire: φ0.18-φ1.2mm
    Winding inserting mode: chained /same core
    Pitch time: ≤40s/pc
    Air Pressure: 0.6-0.8MPa
    Power supply: 380V 50/60Hz 15Kw
    Weight: ≈4000Kg
    Dimension: (L)2000×(W)1300×(H)2300mm





    (3) Application:
    The elelctric motor stator coil inserting machine is suitable for single phase motors,air conditioner motor, washing machine motor, compression motor, fan motor, generator motor and pump motor.

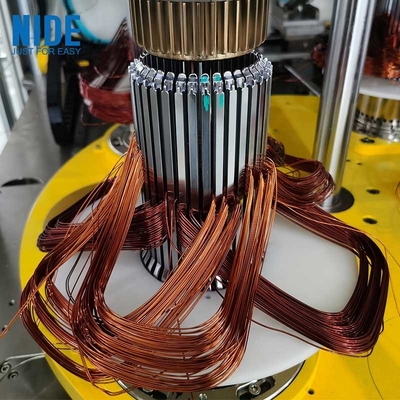

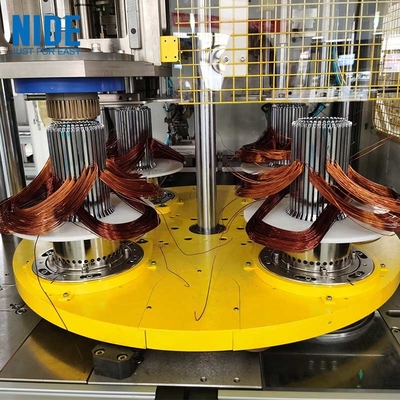

    (4)The winder and inserting machine show

    stator coil winding and inserting machine for fan motor and generator motor

    Full Auto Stator Winding Machine / Inserting Machine For Single Phase Fan Motor
