| Place of Origin: | China |
| Brand Name: | Nide |
| Certification: | None |
| Model Number: | ND-DDR-I |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case suitable for sea transportation |
| Delivery Time: | 35 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 sets per year |
| Type: | Small Size | Automation Type: | Automatic |
|---|---|---|---|
| Working Station: | Single | Condition: | New |
| Highlight: | fan winding machine,electric motor winding machine |
||
Automatic Brushless motor stator inslot needle winding machine for BLDC coil winding
(1)The BLDC needle winding machine Quick View:
Production name :automatic bldc stator needle winding machine
Machine no.:ND-DDR-I

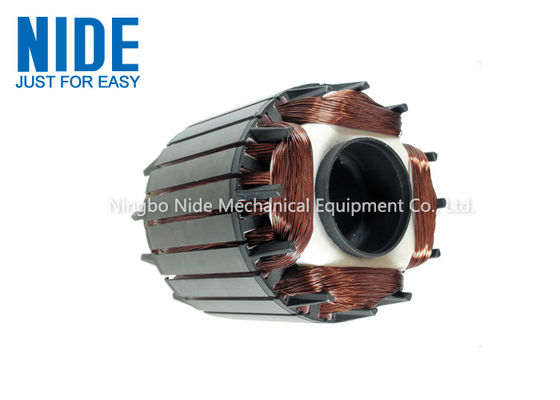

used for small brushless motor stator.
single working mahcine
small type
winding speed rang:0-400rpm
Wire diameter:≤0.8mm
(2) Main technical parameter:
| Production name: | ND-DDR-I Automatic BLDC motor stator needle coil winding machine |
| Stator O.D: | ≤150mm |
| Wire range: | 0.10-0.65mm |
| Stator stack length(including bobbin): | 5~100mmm |
| working station: | single |
| Stator slot width: | ≥1.5mm(adjust as per the wire diameter) |
| Winding speed range: | 0-400rpm |
| Wire diameter: | ≤0.8mm |
(3)Application:
This automatic bldc motor Stator coil Winding Machine is used for small brushless motor stator.
The needle winding machine will auto do winding and wire will auto go through.
And just Loading, unloading, clamping should be done manually.
The bldc motor stator winding machine picture
