High Automation Rotor Die Casting Machine Water Cooling Aluminium Die Casting Machine

Product Details:

Place of Origin:	China
Brand Name:	NIDE
Certification:	CCC
Model Number:	ND-80T

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiable
Packaging Details:	wooden case suitable for sea transportation
Delivery Time:	45 working days
Payment Terms:	L/C, T/T
Supply Ability:	40 sets per year

Contact Now

Detailed Product Description

Name:

Rotor Die Casting Machine

Function:

Cast Aluminum

Color:

Customized

Cooling Method:

Water Cooling

High Light:

aluminium die casting machine

rotor die casting machines

High Automation Rotor Die Casting Machine Water Cooling Aluminium Die Casting Machine

Our rotor die casting machine is easy to operate. The die-casting machine only takes one day for green hands becoming practician. it takes about 10min to change mould. It has a high working efficiency, 10-12s/pcs, 300-400pcs/hour.

During die casting, machine will transfer the residual aluminum to the smelter in time. Since the residual aluminum still has a high temperature. It is cost saving and time saving.

Unlike the conventional die casting machine, our machine doesn't need asbestine cup to keep the temperature and demould. operator only need to press "start" button, no need to handling the heavy tooling which might occur body injury, and the machine has aluminium anti spatter design to prevent the aluminium liquid from spraying and cause injury.

This armature die casting machine is consisted of main machine and hydraulic electronic control system .

1.Main cylinder mould locking system

2. injection system

3. residual aluminum(sprue)pushing and conveying mechanism

4. automatic demould oil spraying

5.lower mould cooling system

6. lubricating system of puncher pin and molten aluminum container

7.Lower mould rotation system

8. Mould assembly system

9.Hydraulic system and electronic control system

10. Aluminum liquid loading system

11.Mechanical arm

12. Loading system

Technical Parameters

NO.	Item	Unit	80TTechnical Parameters
1,Main cylinder:
1	main cylinder mold lock force	KN	500
2	main cylinder mold lock travel	mm	300
2,Injecting cylinder:
1	Injecting cyliner travel	mm	150
2	Injecting cylinder injecting force	KN	300
3	Injecting force(Min-Max)	KN	70-300
4	capacity	L	20
5	aluminum depot OD(Max)	mm	75-90
6	punching head OD(Max)	mm	75-90
7	aluminum depot capacity(Max)	KG	1.5
8	Injection punching head travel distance	mm	55
9	cycle time	S	15-20
10	Rotor OD	mm	MAX85
11	Rotor stack height	mm	MAX70
3,Motor and pump:
1	Pump motor power	KW	7.5
2	Divider motor powder	KW	0.75
3	Oil pump (plunger pump)	L	40Y
4,Machine dimesion:
1	Main frame(LWG)	mm	18001800 2500
2	assembly of oil tank and electric appliance(LWG)	mm	15001000 900
3	turntable OD	mm	1000
5,Cooling pump specification:
1	Submersible pump power	KW	1.5
2	Submersible pump rate of flow	M3/H	5
3	Submersible pump water pressure	MPa	0.4
Remark: the max pressure of this machine is 25Mpa Submersible pump power : 220/380V Optional

Machine main function and characteristic
Automatic get aluminium melt liquid, automatic loading and unloading the rotor.
Rotor loading: automatic pneumatic circularly pick up.
Get aluminium melting liquid: servo motor control the mechanical arm, control the liquid volume through human-machine interface.
Automatic cut the waste material, automatic recycle the cut wasted material and convey it to the furnace by the conveyor.
Automatic feed mold releasing agent, the feeding time and times can be set.
There is water cooling channel, helpful for reducing the mold temperature effectively.
Setting on touch screen: forward and backward speed, stroke, swing angle of the mechanical arm, loading speed,etc.
Machine will alarm and stop working if out of material.
Failure will be automatic displayed and machine will alarm.
One person can take care of more than one machine.

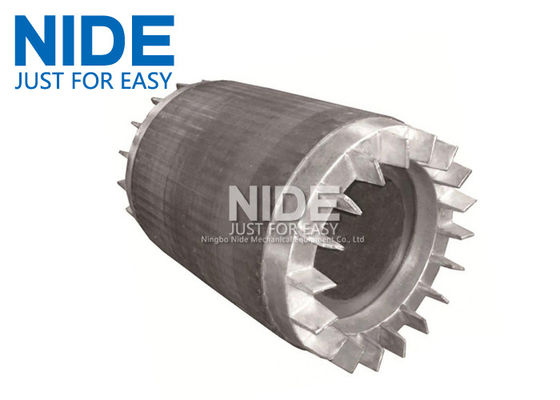

High Automation Rotor Die Casting Machine Water Cooling Aluminium Die Casting Machine 0
