Name: Aluminum Armature rotor Die-Casting Machine with 4 station
Brand: Nide
SKU: ND-RC100
Rating: 5 (126 reviews)

Home Products Rotor Casting Machine

Aluminum Armature rotor Die-Casting Machine with 4 station

Product Details:

Place of Origin:	China
Brand Name:	Nide
Certification:	None
Model Number:	ND-RC100

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wooden case suitable for sea transportation
Delivery Time:	60 working days
Payment Terms:	T/T, L/C
Supply Ability:	600 sets per year

Contact Now

Detailed Product Description

Name:	Armature Rotor Die-Casting Machine	Type:	Automatic
Cooling Method:	Water Cooling	Working Station:	Rotary Plate
Weight:	2500kg
High Light:	aluminium die casting machine , rotor die casting machines

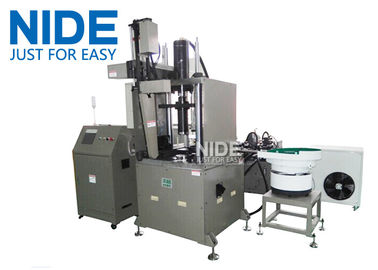

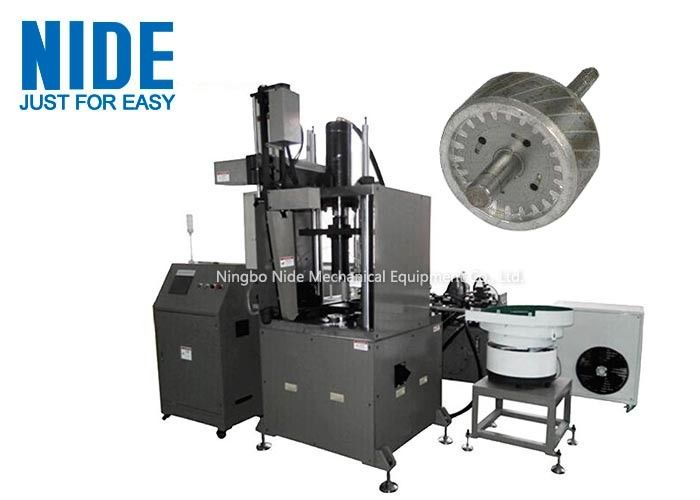

Automatic Aluminum Armature rotor Die-Casting Machine with 4 working station

Quick Detail:

1. This automatic rotor die-casting machine has 4 working station.

2. This automatic armature die casting machine is used for producting cast-aluminum rotor.

3. The armature aluminum die casting machine has somk-sucking system.

4. The aluminum rotor die cating machine saves labor cost.

5. The aluminum rotor die cating machine is high efficiency and low tooling cost.

Technical parameter:

Rotor O.D	40~80mm
Rotor stack length	16~100mm
Pitch time	less than 8s
Upper presser operation pressure	40T
Bottom presser operation pressure	12T
Max die-casting volume	0.6Kg
Fuel tank capacity	425L
Injection piston running speed	slow injection-190mm/s, fast injection-600mm/s
Motor power of 40L Variable piston hydraulic pump	7.5kw
Max. operation pressure	22.6MPa
Machine Dimension	1800(L)X1800(W) X 2350(H)mm
Total Power	about 8.5Kw

Description:

The auto aluminum die casiting machine is 4 working station rotay plate. Mechanical arm takes and puts self-rivet rotor core in the loading station, and then operator injects liquid aluminum in the casting station, which has somke-sucking system, auto releasing agent spraying system and cooling system, aluminum scraps come back to the aluminum melt oven. It owns the merit of saving labor cost, high efficiency and low tooling cost etc.

This kind of Aluminium Rotor Die-casting Machine is used for producing cast-aluminum rotor. It is high efficient with 4 working stations. Automatic Rotor Die Casting machine, aroun 8s/ pc, scrap automatic recycling

Competitive advantages:

The aluminum die casting owns the merit of saving labor cost, high efficiency and low tooling cost etc.

armature production machine.pdf
