| Name: | Stator Winding Lacing Machine | Function: | Coil Lacing |
|---|---|---|---|
| Automatic Type: | Fully Automatic | Working Station: | Four |
| Application: | Various Kinds Of Motor | ||
| High Light: | stator lacing machine,motor winding machine |
||

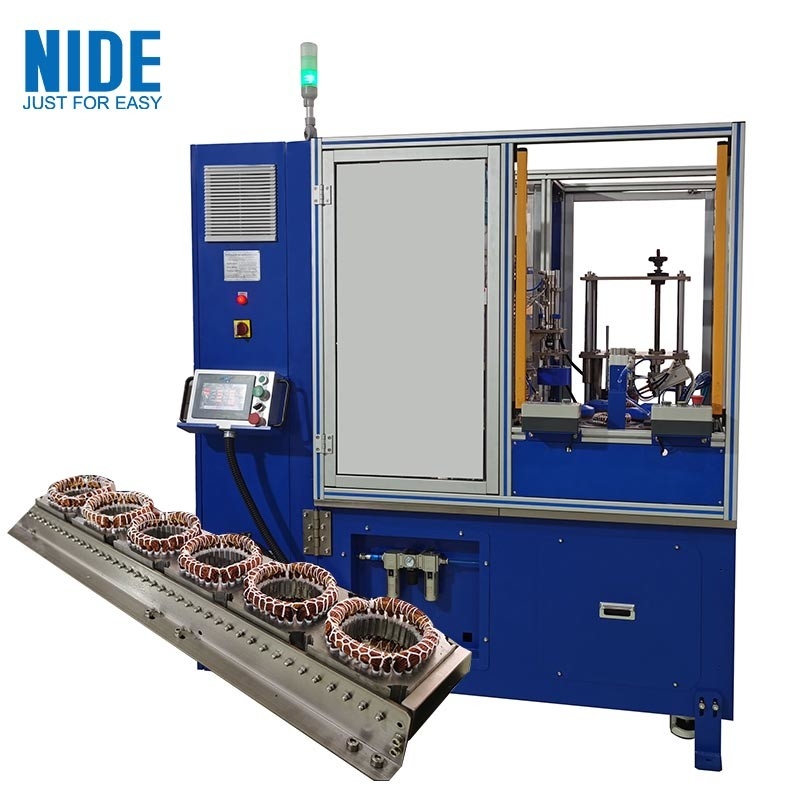

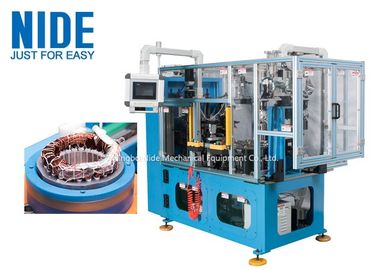

Automatic Production Machine Stator Winding Lacing Machine High Efficiency
Quick detail:
1) This automatic stator lacing machine is used to lace stator windings.
2) This lacer machine has four working stations.
3) The lacing process is done by machine automatically.
4) All the related parameter can be programmed in touch screen.
Application
This automatic stator coil lacing machine is suitable for air conditioner motor, washing machine motor, compression motor, fan motor, generator motor and pump motor.
Technical data
| Stator ID | ≤100mm |
| Stack Height | 30-160mm |
| Height of Coil | ≤65mm |
| Pitch time | ≤14s/pc(24 slots) |
| Air Pressure | 0.4-0.6MPa |
| Power supply | 380V 50/60Hz 6Kw |
| Weight | ≈1500Kg |
| Dimension | 2000×1100×1900mm |
Machine main function and characteristic

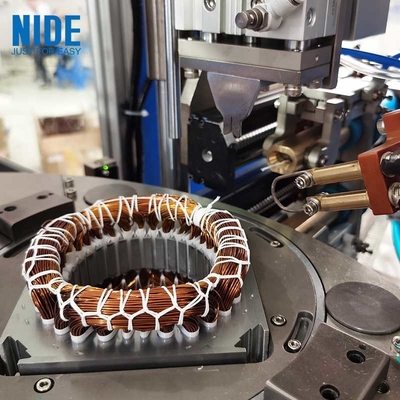

This machine adopts turntable plates structure with four working station, equipped with stator pressing device, auto feeding device, auto wire feeding device, auto knotting device, auto cutting device and ect. Overhang winding adopts twin needle lacing simultaneously. Needle transpositioning, hooking and stator indexing are controlled by five spindle servo system.

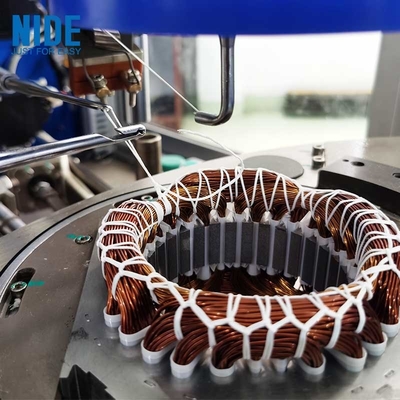

Different lacing pattern can be set, such as slot by slot lacing, interval slot lacing and fancy lacing. With fast speed, low noise, simple operation and easy tooling change, this machine can be connected to automatic stator production line.
Macine working station
