Double End Stator Lacing Machine / Coil Lacing Machine AC Electric Motor

Double End Stator Lacing Machine / Coil Lacing Machine AC Electric Motor

  • Double End Stator Lacing Machine / Coil Lacing Machine AC Electric Motor
  • Double End Stator Lacing Machine / Coil Lacing Machine AC Electric Motor
  • Double End Stator Lacing Machine / Coil Lacing Machine AC Electric Motor
  • Double End Stator Lacing Machine / Coil Lacing Machine AC Electric Motor
Double End Stator Lacing Machine / Coil Lacing Machine AC Electric Motor
Product Details:
Place of Origin: china
Brand Name: nide
Certification: CE
Model Number: BXSIIL1-160-160
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: negotiable
Payment Terms: L/C, T/T
Supply Ability: 100 sets coil lacing machines per year
Contact Now
Detailed Product Description
Product Name: Electric Motor Stator Coil Lacing Machine Application: Induction Motor Coil Lacing Machine
Color: Customized Production Capacity: 0.8sec/slot
Mode: Slot By Slot/ Interval Slot/ Fancy Lacing System: Servo Driven
Type: Automatic Station: One
High Light:

stator lacing machine

,

automatic winding machine

Automatic double end stator coil lacing machine for electric motor





The automatical coil lacing machine is used for lacing the electric motor stator coil , it can lace both ends up and down at the same time , greatly improved productivity and ensure the same lashing results. The coil lacing machine uses a needle with a hook end which is advanced along a land of the stator between the grooves in which the coils are wound to extend therebeyond within the stator.



automatic stator coil lacing machine



Coil lacing Machine main function and characteristic

1.This double ends stator coil lacing machine adopts vertical structure, equipped with stator pressing device , auto stator feeding device , auto thread feeding device , auto knotting device , auto thread cutting device , auto thread head cutting device ;

2.The upper and lower ends of the stator wire package are double-needle and automatically lacing at the same time;

3.Controlled by servo drive system, automatically complete crochet corner hook line work, stator indexing work.

4.The coil lacing machine can automatically feed thread and cut thread. There is no need to tie a knot.

5.Lacing tension can be set,

6.CNC control design and HIM program.Through the human-machine interface, the operator can set slot-by-slot lacing,hopping and lacing, and all kinds of fancy lashing;

7.The rotation speed can be set.

8.The coil lacing machine is small in size, fast in speed, accurate in positioning and low in noise;

9.The coil lacing machine is easy to operate, and it is convenient and quick to change the mold.

10. The coil lacing machine adopts safety grating protection system. Operator need to stand when operating.

11.The coil lacing machine adopts two hands simultaneously start button to ensure safety.

12.Primary qualification rate ≥98.5%, after rework, the qualification rate ≥99.5%



coil lacing machine





Coil lacing machine application

The automatic coil lacing machine is suitable for miniature induction motors such as air conditioner motors, washing motors, compressor motors, fan motors, generator motors, and pump motors.





Coil lacing machine technical data

Product name: Motor stator automatic coil lacing machine
Stator ID: 30~110mm
Stator OD: Max. 190mm
Stator stack length: 50~130mm
Over-hang height: Max. 40mm
Production capacity : ≤1s/slot
Voltage: 380V/50/60HZ
Power: 3.5KW
Machine weight: about 600kg
Machine dimension: L1500*W650*H1700mm





Coil lacing machine Picture show

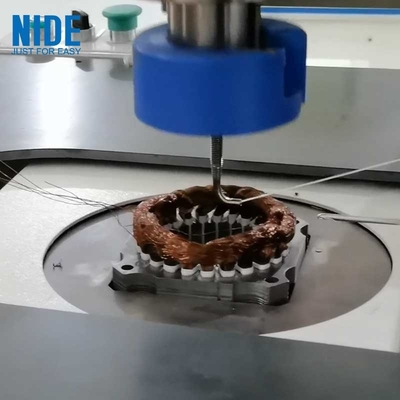

1. The stator coil lacing machine workbench display

Double End Stator Lacing Machine / Coil Lacing Machine AC Electric Motor 2

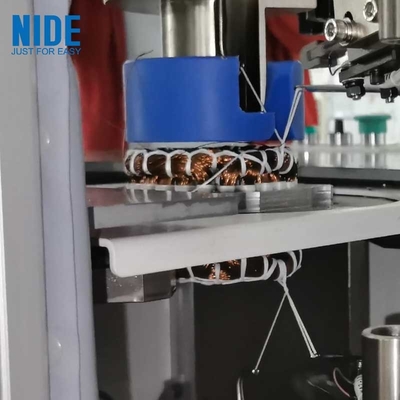

2. The stator coil lacing machine double end lacing

Double End Stator Lacing Machine / Coil Lacing Machine AC Electric Motor 3

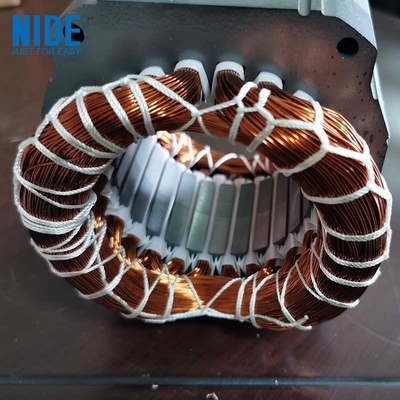

3. Coil lacing completed

Double End Stator Lacing Machine / Coil Lacing Machine AC Electric Motor 4



The automatic double end stator coil lacing machine Video  https://youtu.be/itBcw-HfZPg
