Automatic Motor Stator Lacing Machine Electric Miniature Induction
Product Details:
Place of Origin: china
Brand Name: nide
Certification: CE
Model Number: BXSIIL1-160-160-6E
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: negotiable
Payment Terms: L/C, T/T
Supply Ability: 100 sets coil lacing machines per year
Contact Now
Detailed Product Description
Product Name: Electric Motor Stator Coil Lacing Machine Application: Induction Motor Coil Lacing Machine
Color: Customized Production Capacity: 0.8sec/slot
Mode: Slot By Slot/ Interval Slot/ Fancy Lacing System: Servo Driven
Type: Automatic Station: One
High Light:

Motor Stator Lacing Machine

,

Electric Miniature Induction Lacing Machine

,

Automatic Lacing Machine

Automatic Electric Miniature Induction Motor Stator Lacing Machine

(1) Motor Stator Lacing Machine Application

This motor stator lacing machine is suitable for compressor motors, air conditioner motors, exhaust fan motors,generator motors, washing motors, fan motors, pump motors and other miniature induction motors.



This electric motor stator lacing machine is used to form and fix the stator coil, prevent the copper wire from being exposed inside and outside, prevent the lead wire from exceeding the size of the coil, and fix the lead wire. It equipped with two needles, therefore, it can do lacing for the top and bottom coil at same time, so that it saves time and improve the working efficiency



(2) Motor Stator Lacing Machine Technical Data

Product name: Automatic electric motor stator lacing machine
Stator ID: 50~120mm
Stator OD: Max. 160mm
Stack length: 35~165mm
Over-hang height: Max. 60mm
Lacing mode: slot by slot/ interval slot/ fancy lacing
Lacing speed: 0.5s/s
Power: 380V/50/60HZ 3.5KW
Machine dimension: L1500*W700*H1650mm
Machine weight: About 650kg

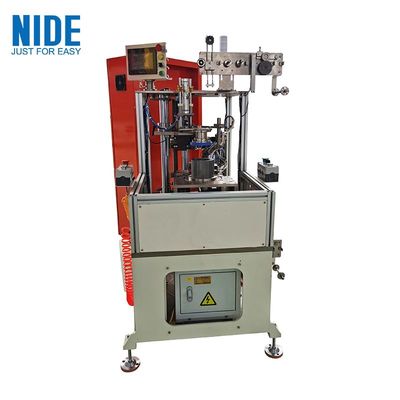

(3) Motor Stator Lacing Machine Picture Show

Automatic Motor Stator Lacing Machine Electric Miniature Induction 0

Automatic Motor Stator Lacing Machine Electric Miniature Induction 1



(4) Automatic Motor Stator Lacing Machine Video:
