| Place of Origin: | China |
| Brand Name: | Nide |
| Certification: | None |
| Model Number: | BXSIIL1-160-160-6C |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case suitable for sea transportation |
| Delivery Time: | 60 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 600 sets per year |
| Product Name: | EV Motor Stator Winding Lacing Machine | Application: | Electric Motor ,induction Motor ,single Phase Motor |
|---|---|---|---|
| Type: | Automatic | Lacing Stations: | 1 |
| Condition: | New | Color: | Customized |
| High Light: | stator lacing machine,automatic winding machine |
||

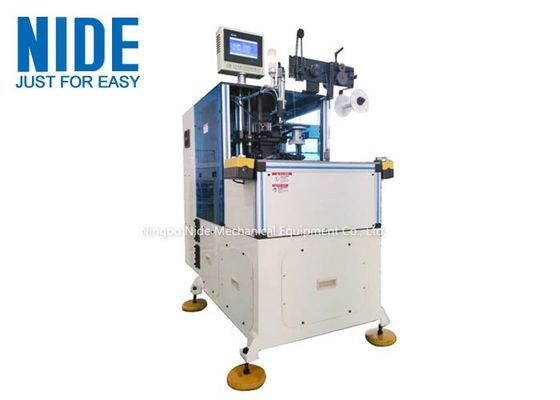

Automatic Double Ends Low Noise EV Motor Stator Wire Lacing Machine
Quick Detail:
Description:
Servo Double Sides Stator Winding Lacing Machine
Loading stator vertically; equipped with pressing, automatic feeding, automatic cutting device, etc.; overhang winding adopts twin needle lacing by servo system simultaneously; needle indexing, hooking and stator indexing are controlled by servo system; spindle adopts frequency speed control; slot by slot lacing, interval lacing, and fancy lacing could be achieved by setting in human-machine interface; characterized by compact appearance, fast speed .low noise; simple operation and easy tooling change.
Applications:
It’s suitable for lacing the oven-hang of the induction motor stator. It is used for stator which meets the specification of below.
Specifications :
|
Min. stator ID |
33mm |
|
Max. stator OD |
150mm |
|
Over-hang height |
15~48mm |
|
Stator stack length |
15~120mm |
|
Pitch time |
About 0.5~0.7sec/slot |
|
Power supply |
380V/50/60Hz |
|
Air pressure |
0.5~0.8MPa |
|
Power |
3KW |
|
Dimension |
1570 x 670 x 1680mm |
|
Weight |
About 900kg |
Competitive advantages:
Fast speed , low noise; simple operation and easy tooling change, double sides lacing simultaneously. PLC and touch screen control, it’s programmable.
Contact Person: Herbert
Tel: +8615067409300
